Power Pole Cross Arm

Product description:

The Power Pole Cross Arms, crafted by Jinmai Powerline, are the epitome of strength and reliability in electrical utility support systems. These cross arms, also known as steel cross arms, utility pole cross arms, or pole cross arms, are a crucial component in the construction and maintenance of overhead power lines, transmission lines, and transmission towers.

Product features:

• Versatile Applications: Our cross arms are designed to cater to a wide range of electrical infrastructure needs, including overhead lines, transmission lines, and transmission towers.

• Customizable Designs: We offer a variety of cross arm set designs tailored to suit different voltage levels and conductor types, ensuring optimal performance and compatibility with your specific electrical system requirements.

• Durable Construction: Made from high-quality steel materials, our cross arms are built to withstand the rigors of various weather conditions and the demands of continuous power transmission.

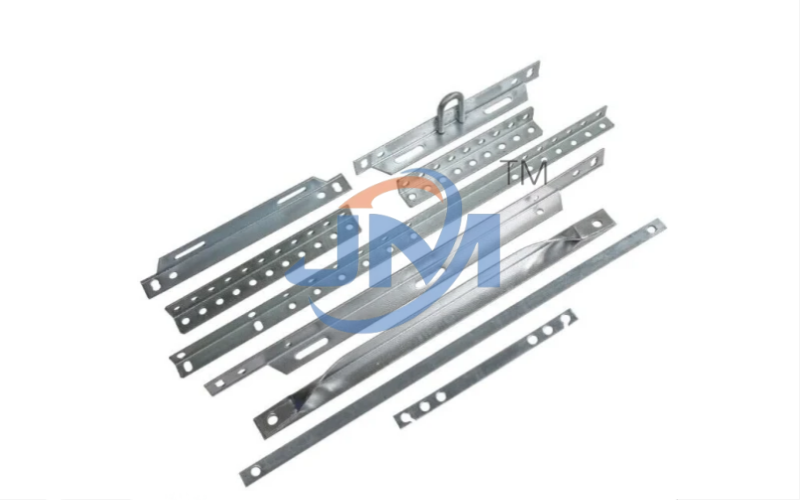

• Easy Assembly: Each cross arm set comes with all necessary components, including tie straps, double arming bolts, curved washers, and hex/square nuts, for straightforward installation and secure fastening.

Manufacturing Process:

• Material Selection and Preparation: The first step in our manufacturing process is the selection of high-quality steel materials. We prioritize materials that offer optimal strength and durability, ensuring that the cross arms can withstand the harsh demands of outdoor environments and heavy electrical loads.

• Cutting and Shaping: Once the steel materials are selected, they are cut to the precise dimensions required for the specific cross arm design. Our state-of-the-art machinery allows for accurate cutting, ensuring that each cross arm is crafted to the correct size, whether it be for a standard 11kV cross arm set or a custom design.

• Fabrication: After cutting, the steel pieces are fabricated into the desired shape of the cross arm, such as the U channel or angle design. This process involves bending and forming the steel to achieve the necessary structure and strength. Our skilled craftsmen and automated machinery work in tandem to ensure precision and consistency in the fabrication process.

• Surface Treatment: To protect the cross arms from corrosion and other environmental factors, we apply a comprehensive surface treatment. This may include processes such as galvanization, painting, or powder coating, which not only enhances the longevity of the cross arms but also ensures aesthetic appeal.

• Assembly: With the cross arms fabricated and treated, we move on to the assembly stage. Here, the cross arms are combined with other essential components, such as tie straps, double arming bolts, curved washers, and hex/square nuts. This assembly is carried out with precision to ensure a secure and stable final product.

• Quality Control and Testing: Each cross arm set undergoes rigorous quality control checks and testing at various stages of the manufacturing process. We perform strength tests, load-bearing tests, and corrosion resistance tests to verify that our cross arms meet the required industry standards and our own stringent quality criteria.

• Packaging and Shipping: Once the cross arms have passed all quality control tests, they are carefully packaged to protect them from damage during transportation. Jinmai Powerline ensures that the products are securely packed and efficiently shipped to our customers, ready for installation and use in their electrical infrastructure projects.

Technical specifications:

• Standard Length for 11kV Cross Arm Set: 2200mm, designed to provide ample support and stability for 11kV electrical systems.

• U Channel Cross Arm: Ideal for bare conductors, this design offers a smooth and secure platform for wire placement.

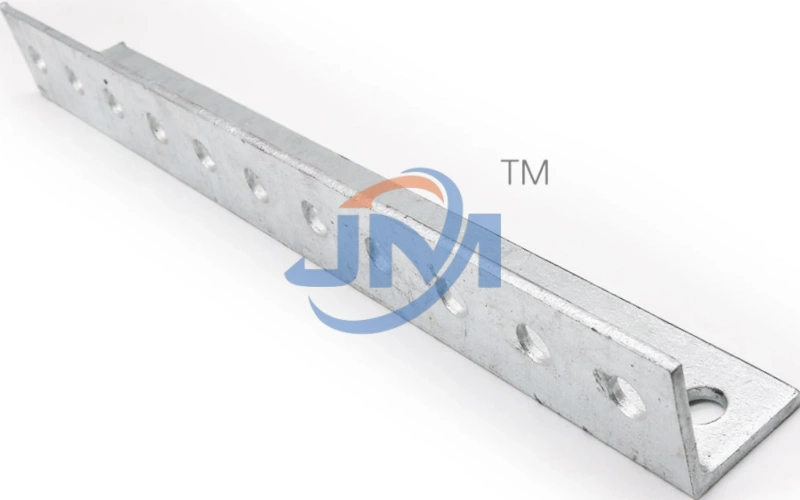

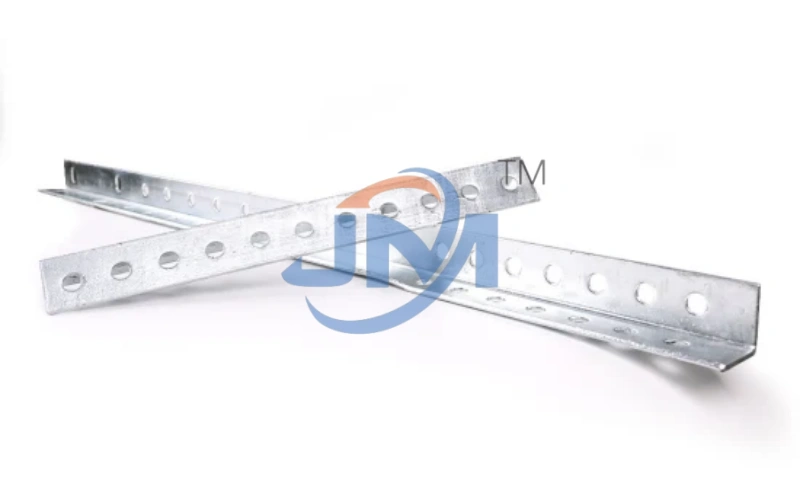

• Angle Cross Arm: Perfect for both bare and covered conductor setups, this versatile option adapts to various electrical configurations.

Conclusion:

Jinmai Powerline's commitment to excellence is evident in our detailed manufacturing process for power pole cross arms. From material selection to final quality control, we take every step necessary to produce cross arms that are reliable, durable, and built to last. Trust Jinmai Powerline for the highest quality power pole cross arms, designed to support and strengthen your electrical infrastructure.

Customization Services:

If you require a customized Guy Clamp, Jinmai Powerline's skilled workers and knowledgeable engineers can provide a solution from design to delivery in a short period.

If you are interested in our Guy Clamp or have any questions, please feel free to contact us.
