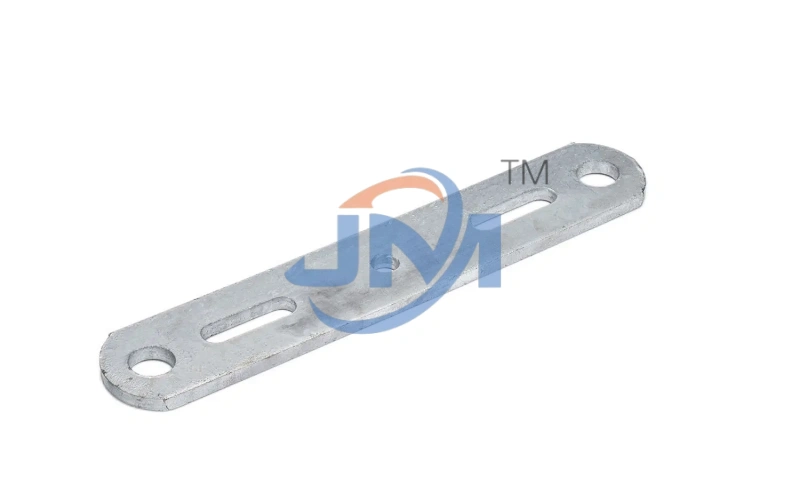

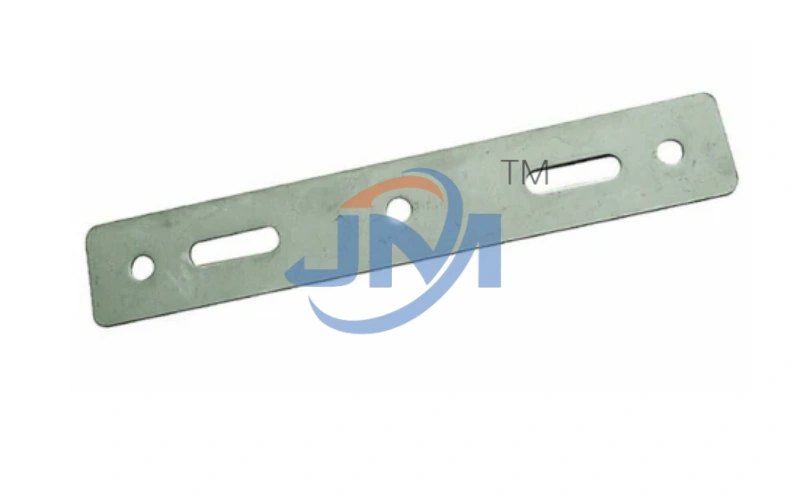

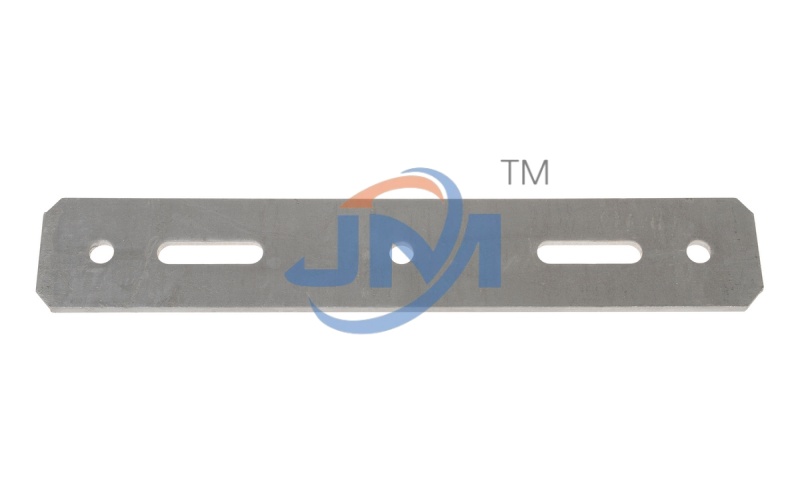

The Double Arming Plate from Jinmai Powerline is a specialized component designed for double-arm construction, predominantly utilized in the Russian market. This essential piece of hardware is crafted for stability and durability, ensuring the reliable support of electrical infrastructure.
Material and Coating: The double arming plate is hot-dip galvanized, providing a robust layer of protection against corrosion and ensuring a longer service life in various environmental conditions.
Design and Functionality: Each plate is expertly designed to connect with two parallel cross arms. This configuration is specifically engineered to support insulator pins, which are securely mounted to the center hole of the plate, facilitating efficient electrical transmission.
Customization: As a professional manufacturer, supplier, and exporter, Jinmai Powerline offers a comprehensive range of double arming plates in all sizes. Furthermore, the company is committed to meeting customer needs by offering customization services, allowing for the creation of plates tailored to specific design requirements.
Quality Assurance: Jinmai Powerline is dedicated to delivering products that meet the highest standards of quality and performance. Their commitment to excellence is reflected in the meticulous manufacturing process and rigorous quality control measures.
Global Reach: With a strong focus on international markets, Jinmai Powerline ensures that their products are accessible to customers worldwide, providing reliable support for electrical infrastructure projects across the globe.
Design and Engineering：The manufacturing process for Jinmai Powerline's double arming plates begins with meticulous design and engineering. Utilizing advanced computer-aided design (CAD) software, engineers create detailed blueprints that specify the dimensions, galvanization requirements, and structural integrity needed for each plate. This step ensures that the final product will meet the specific needs of the double-arm construction it will support.
Material Selection：High-quality steel is chosen for its strength and durability. The selected material must be capable of withstanding the stress and environmental conditions it will be exposed to during its service life. The steel is sourced from reliable suppliers who adhere to industry standards for quality and sustainability.
Cutting and Shaping：Once the material has been selected, it is cut to size using precision cutting machines such as laser or plasma cutters. These machines ensure that the steel is cut with high accuracy, minimizing material waste. The cut pieces are then shaped into the desired form of the double arming plate, taking care to maintain the precise dimensions outlined in the design blueprint.
Drilling and Tapping：After shaping, holes are drilled into the plate for the insulator pins and cross arms. These holes are drilled with precision to ensure a perfect fit with the corresponding components. The holes are then tapped to create internal threads that will secure the bolts and pins in place.
Hot-Dip Galvanization：To protect the steel from corrosion and extend its lifespan, the double arming plates undergo the process of hot-dip galvanization. This involves coating the plates in a layer of molten zinc. The high temperature ensures that the zinc bonds with the steel, creating a protective barrier that is both durable and aesthetically pleasing.
Quality Control：Each double arming plate is inspected for defects and compliance with the design specifications. Jinmai Powerline employs a rigorous quality control process that includes visual inspections, dimensional checks, and strength testing to ensure that every plate meets the company's high standards.
Packaging and Shipping：Once the plates have passed all quality checks, they are carefully packaged to protect them from damage during transportation. The plates are then shipped to customers worldwide, ready to be integrated into their electrical infrastructure projects.
General Specifications: Designed for double-arm construction, ideal for electrical infrastructure support.Primarily used in Russia and countries with similar construction requirements.
Material and Construction: High-strength steel, selected for its durability and load-bearing capacity.Hot-dip galvanized finish for superior corrosion resistance and weather protection.Adheres to international standards, with a minimum zinc layer thickness to prevent premature corrosion.Pre-drilled holes for bolts and insulator pins, ensuring secure attachment to cross arms.
Dimensions and Tolerances: Available in a range of sizes to fit common double-arm construction configurations.Capable of manufacturing to specific customer dimensions and design requirements.Held to tight manufacturing tolerances to ensure compatibility and ease of assembly in the field.
Load and Mechanical Properties: Designed to support the weight of insulators and electrical conductors, with specific load ratings based on size and design.Steel grade suitable for heavy-duty use in electrical transmission and distribution systems.Plates are engineered to withstand bending forces without warping or breaking.
Installation and Maintenance: Precisely drilled to accommodate insulator pins and cross arms securely.Low maintenance due to galvanized coating, although periodic inspections are recommended to ensure long-term performance.
Safety and Compliance: Complies with international safety standards for electrical infrastructure and construction.Certified by relevant industry bodies to ensure quality and reliability.
Packaging and Shipping: Plates are individually wrapped to prevent damage and corrosion during transit, then securely palletized for shipping.Available for global shipping, with packaging and handling designed to protect the product during sea or land transport.
Jinmai Powerline's Double Arming Plates represent a significant advancement in the field of electrical infrastructure support systems. These plates are meticulously engineered and manufactured to meet the rigorous demands of double-arm construction, with a particular focus on the Russian market's unique requirements. The combination of high-strength steel and a hot-dip galvanized coating ensures that these plates offer superior durability, corrosion resistance, and a long service life, even in harsh environmental conditions.
The technical specifications of Jinmai Powerline's Double Arming Plates are a testament to the company's commitment to quality and performance. With customizable sizes, precise load capacities, and adherence to international safety standards, these plates are designed to provide reliable support for insulators and electrical conductors, contributing to the stability and safety of electrical transmission and distribution systems.
Furthermore, the comprehensive manufacturing process, from material selection to quality control and after-sales service, reflects Jinmai Powerline's dedication to excellence and customer satisfaction. The company's ability to offer tailored solutions to meet specific project needs, along with their global reach and technical support, positions them as a trusted partner for professionals in the electrical construction industry.
If you require a customized Guy Clamp, Jinmai Powerline's skilled workers and knowledgeable engineers can provide a solution from design to delivery in a short period.
If you are interested in our Guy Clamp or have any questions, please feel free to contact us.
