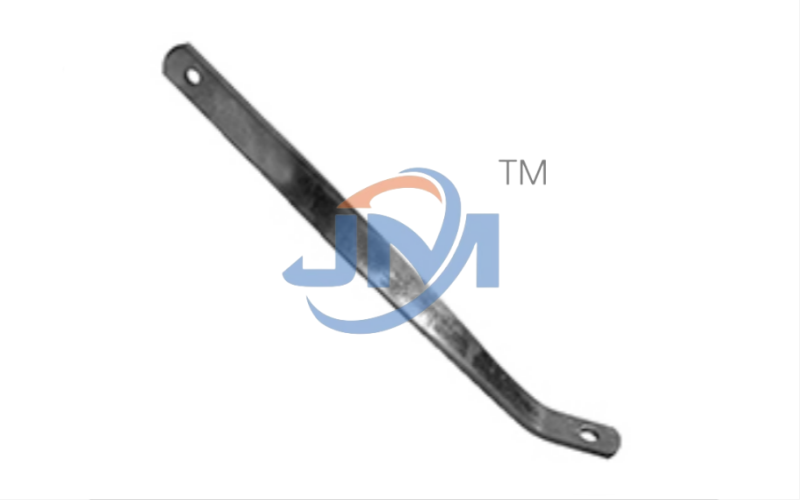

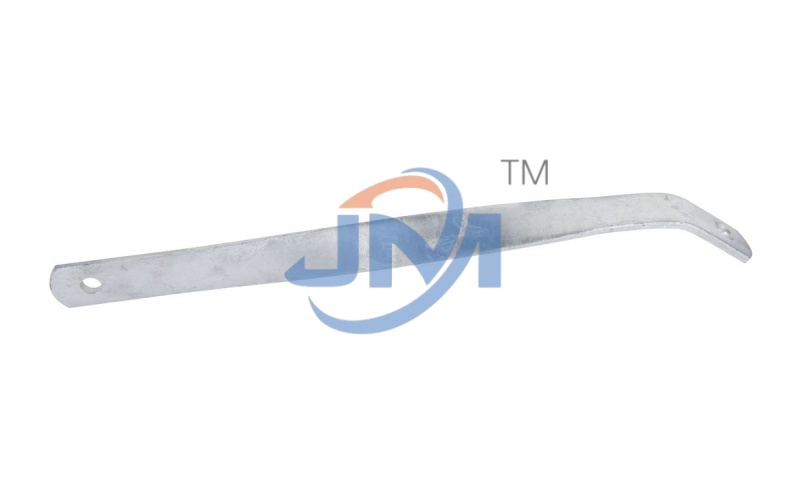

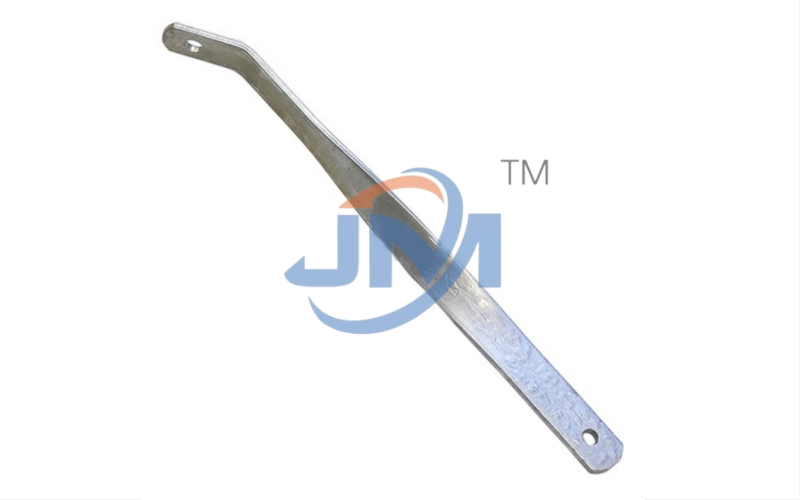

The Guard Arm Brace, as provided by Jinmai Powerline, is a critical component designed to enhance the stability and structural integrity of electrical cross arms in power and telecom constructions. This robust brace is engineered to offer unwavering support, ensuring that the cross arms remain secure and well-anchored in various environmental conditions.
Durable Construction: The Guard Arm Brace is crafted from high-quality steel, ensuring that it can withstand the rigors of outdoor installations and resist corrosion over time.
Hot-Dip Galvanization: Each brace undergoes a process of hot-dip galvanization as per ASTM A-153 standards. This not only protects the brace from rust and other forms of corrosion but also extends its service life significantly.
Easy Installation: The design of the Guard Arm Brace allows for straightforward installation. It fastens to the electrical cross arm using bolts and secures to the pole with a lag screw, providing a quick and efficient setup process.
Customization Options: Jinmai Powerline understands that every project has unique requirements. As such, they offer the flexibility to customize the Guard Arm Brace according to specific design needs, ensuring a perfect fit for any infrastructure project.
Reliable Support: By mounting to the electrical cross arm and pole, the Guard Arm Brace effectively distributes the load and weight, reducing the stress on these structures and enhancing their overall stability.
Design and Engineering: The process begins with a thorough design and engineering phase. Jinmai Powerline's team of engineers utilizes the latest CAD software to create precise designs that meet the specific requirements of their clients. These designs take into account the load-bearing capacity, environmental factors, and the dimensions of the electrical cross arms and poles the braces will be mounted on.
Material Selection: Once the design is finalized, the team selects the appropriate steel grade for the Guard Arm Brace. The chosen material must have the necessary tensile strength and durability to withstand harsh weather conditions and resist corrosion. High-quality steel ensures the longevity and reliability of the braces.
Cutting and Shaping: The selected steel material is then cut to the required dimensions using advanced cutting machinery. This ensures precision and accuracy in the size of each brace. Following cutting, the steel is shaped into the final form of the guard arm brace using presses, bends, and other forming equipment.
Welding and Assembly: The individual components of the Guard Arm Brace are then precisely welded together. Jinmai Powerline uses state-of-the-art welding techniques to ensure strong and consistent joints. The welding process is closely monitored to maintain the integrity of the brace and to avoid any defects.
Hot-Dip Galvanization: After the welding process, the Guard Arm Brace undergoes hot-dip galvanization as per ASTM A-153 standards. This process involves coating the steel with a layer of zinc, which provides excellent protection against corrosion. The hot-dip galvanization not only enhances the aesthetic appeal of the brace but also significantly extends its service life.
Quality Control and Inspection: Each Guard Arm Brace is subject to rigorous quality control checks and inspections throughout the manufacturing process. Jinmai Powerline's quality assurance team ensures that every brace meets the company's stringent quality standards and the specific requirements of the client.
Customization: For clients requiring customized solutions, Jinmai Powerline has a dedicated team that works closely with the client to incorporate the necessary modifications into the design and manufacturing process. This ensures that the final product perfectly fits the unique needs of the project.
Packaging and Shipping: Once the Guard Arm Braces have passed all quality checks, they are carefully packaged to protect them during transportation. Jinmai Powerline has a well-organized logistics system in place to ensure that the braces are delivered to the client's site safely and on time.
Material Composition: The braces are made from high-strength steel, typically Grade 3 or equivalent, which provides the necessary tensile strength and durability.The steel is coated with a layer of zinc through the process of hot-dip galvanization, ensuring corrosion resistance and a longer service life.
Dimensions and Tolerances: Jinmai Powerline offers a range of standard sizes to fit common cross arm and pole dimensions. Custom sizes are also available upon request.The manufacturing process maintains strict dimensional tolerances to ensure compatibility with various cross arm and pole configurations.
Load Bearing Capacity: The Guard Arm Brace is designed to support significant weight loads without deformation or failure, with specific capacities depending on the size and design of the brace.The brace effectively distributes the load across the electrical cross arm and pole, reducing stress concentrations and enhancing overall stability.
Fastening Mechanism: The brace is secured to the cross arm using high-strength bolts, ensuring a stable and secure connection.For mounting to the pole, the brace utilizes lag screws that provide a strong and reliable anchorage.
Corrosion Protection: The hot-dip galvanization process provides a minimum coating of zinc as per ASTM A-153 standards, offering superior protection against rust and other forms of corrosion.This process significantly extends the service life of the Guard Arm Brace, ensuring long-term performance and value.
Testing and Certification: Each brace undergoes a series of quality checks and tests to ensure compliance with industry standards and the company's rigorous quality control protocols.Jinmai Powerline's Guard Arm Braces are certified for use in power and telecommunications infrastructure projects, ensuring that they meet all necessary safety and performance criteria.
Customization: Jinmai Powerline can modify the technical specifications to accommodate specific project requirements, including unusual dimensions, load requirements, or environmental conditions.
Environmental Considerations: The Guard Arm Brace is designed to withstand a wide range of weather conditions, including extreme temperatures, humidity, and precipitation.The materials and processes used in the manufacturing of the brace are selected with an emphasis on sustainability and minimal environmental impact.
In conclusion, Jinmai Powerline's Guard Arm Brace stands out as a premium choice for bolstering the stability and reliability of power and telecom infrastructures. The technical specifications highlight the brace's robust construction, corrosion resistance, and the ability to withstand significant load-bearing requirements, all of which are critical for ensuring the longevity and performance of electrical cross arms.
The meticulous manufacturing process, from material selection to final inspection, reflects Jinmai Powerline's commitment to quality and adherence to industry standards. The hot-dip galvanization process, in particular, is a testament to the company's dedication to providing products that not only perform exceptionally well but also maintain their integrity over time in various environmental conditions.
Furthermore, the customization options offered by Jinmai Powerline cater to the unique needs of different projects, allowing for a perfect fit and optimal performance. This flexibility, combined with the company's customer-centric approach, ensures that each client receives a product that is tailored to their specific requirements.
The environmental considerations in the manufacturing process demonstrate Jinmai Powerline's awareness and responsibility towards sustainable practices. By focusing on minimizing environmental impact, the company aligns with the global movement towards greener solutions.
If you require a customized Guy Clamp, Jinmai Powerline's skilled workers and knowledgeable engineers can provide a solution from design to delivery in a short period.
If you are interested in our Guy Clamp or have any questions, please feel free to contact us.
