Introducing the high-quality Angle Brace and Double Span V Crossarm Brace, expertly crafted by Jinmai Powerline, a leading name in the manufacturing of steel crossarms. This robust and reliable support structure is designed to bolster heavy crossarm constructions, ensuring the stability and longevity of your infrastructure.

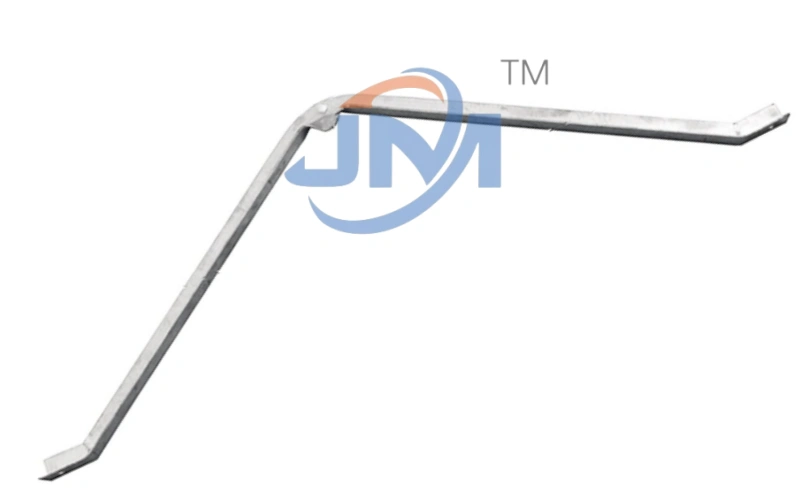

Design: The Double Span V Crossarm Brace, also known as the Angle Crossarm Brace or V Type Crossarm, is a one-piece structure engineered for optimal support. It utilizes angle steel for the braces, which are securely attached to the underside of the crossarm with ½” bolts and fastened to the pole with 5/8” bolts.
Dimensions and Load Capacity: With an angle size of 1-3/4” X 1-3/4” X 3/16” and a generous span of 72”, this crossarm brace offers a drop of 22” and can handle a working load of up to 1500 lbs., making it suitable for various heavy-duty applications.
Material and Finish: All components are galvanized using the hot-dip process, ensuring high tensile strength and corrosion resistance. The use of steel nuts, bolts, and spring washers further enhances durability, making them ideal for coastal and polluted atmospheres.
Applications: The electrical crossarm is specifically designed to reinforce street light power lines. It plays a crucial role in holding the main power, supporting the cable and insulator along with transmission lines and distribution to anchor conductors.
Customization: As a professional manufacturer, Jinmai Powerline offers customization services, allowing you to order Angle Braces in all sizes and tailored to your specific designs, ensuring a perfect fit for your project requirements.
Design and Engineering: Our process begins with detailed design and engineering work. We use advanced software to create precise models of the Angle Brace and Crossarm Brace, taking into account the required load capacity, dimensions, and environmental factors such as wind and corrosion resistance.
Material Selection: We select high-grade steel for the angle steel braces, ensuring that the material meets the necessary tensile strength and durability requirements. This careful material selection is crucial for the longevity and performance of our products.
Cutting and Shaping: Using state-of-the-art cutting machines, we cut the steel to the exact dimensions specified in our designs. This ensures that each brace fits perfectly within the crossarm structure. The cutting process is followed by shaping the steel to achieve the desired profile.
Galvanization: To protect our braces against corrosion, we employ the hot-dip galvanizing process. This involves coating the steel with a layer of molten zinc, which creates a protective barrier against the elements. This process enhances the longevity of our products and ensures they remain maintenance-free for an extended period.
Assembly: The individual components of the crossarm brace are assembled with precision. We use ½” bolts to attach the braces to the underside of the crossarm and 5/8” bolts to secure them to the pole. This meticulous assembly ensures that each brace is strong and stable.
Quality Control: Each Angle Brace and Crossarm is thoroughly inspected at multiple stages during the manufacturing process. Our quality control team checks for any defects, ensuring that all components meet our high standards before they are packaged for shipment.
Packaging and Shipping: Once the final inspection is complete, the braces are carefully packaged to protect them during transportation. We use robust packaging materials to ensure that the braces arrive at their destination in perfect condition.
Customization: For clients requiring bespoke solutions, we offer a customization service. Our team works closely with clients to understand their specific needs and designs the braces accordingly, maintaining the same high standards of quality and durability.
Product Type: Angle Brace and Double Span V Crossarm Brace
Manufacturer: Jinmai Powerline
Design: One-piece construction for heavy-duty support
Purpose: To support and anchor conductors in street light power lines and transmission structures
Primary Material: High-grade steel (angle steel)
Bolts: ½” bolts for crossarm attachment, 5/8” bolts for pole attachment
Galvanization: Hot-dip galvanized for superior corrosion resistance
Coating Thickness: Adheres to ASTM A123 specifications for protective zinc coating
Angle Size: 1-3/4” X 1-3/4” X 3/16”
Span Length: 72”
Drop: 22”
Working Load Capacity: 1500 lbs.
Corrosion Resistance: Suitable for coastal and polluted environments
Weather Resistance: Ideal for harsh weather conditions
Maintenance: Virtually maintenance-free with no painting required
Pin Insulators: For secure cable and insulator support
F Bracket: To enhance the stability of the crossarm structure
Nuts and Bolts: High tensile, electro-galvanized for strength and durability
Insulators Pins: For additional support and insulation
Weight: Lightweight for ease of handling and erection
Transportation: Designed to reduce transportation costs due to its light weight
Options: Available in various sizes and can be tailored to specific project requirements
Standards Compliance: Meets or exceeds industry standards for structural support and safety
In conclusion, Jinmai Powerline's Angle Brace and Double Span V Crossarm Brace stand out as exemplary solutions for infrastructure support systems. These products are engineered with precision and manufactured using a rigorous process that ensures their durability, reliability, and performance in the most demanding conditions. The technical specifications outlined above demonstrate the high-quality construction and thoughtful design that goes into each brace, making them suitable for a wide range of applications, from street light power lines to transmission towers.
The use of high-grade steel, hot-dip galvanization, and precision engineering not only guarantees a long service life but also ensures that these braces can withstand harsh weather and corrosive environments with minimal maintenance. The inclusion of essential accessories and hardware further enhances the functionality and ease of installation, while customization options provide flexibility to meet specific project requirements.
Jinmai Powerline's commitment to excellence is evident in the manufacturing process, quality control, and the provision of cost-effective and labor-friendly products. By choosing Jinmai Powerline for your Angle Brace and Crossarm Brace needs, you invest in the stability and longevity of your infrastructure, backed by a company that stands behind the quality and performance of its products.
In summary, the Angle Brace and Double Span V Crossarm Brace from Jinmai Powerline represent a smart choice for those seeking robust, high-quality, and reliable support structures for their infrastructure projects. With a focus on durability, ease of installation, and long-term value, Jinmai Powerline continues to be a trusted partner in the industry.
