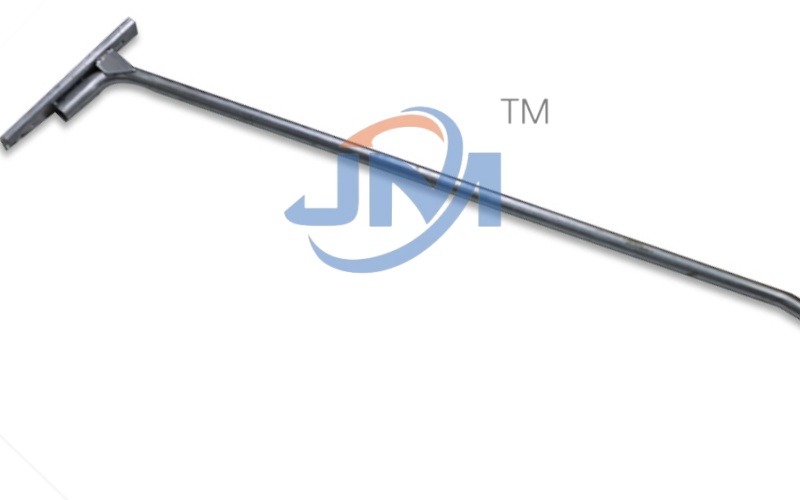

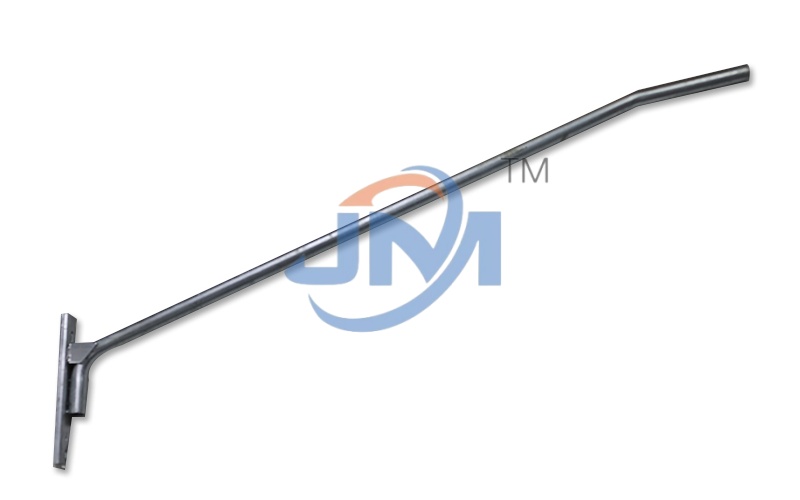

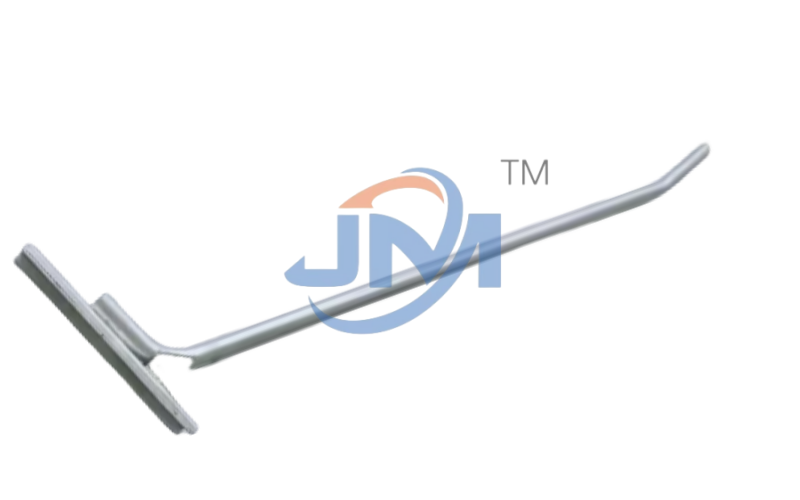

Street Light Arm

Product description:

The Jinmai Powerline Street Light Arm is a premium quality extension designed to enhance the illumination capabilities of outdoor street light poles. This robust and versatile accessory is engineered to improve the aesthetic appeal and functionality of urban and residential lighting systems.

Product features:

• Material and Construction: Made from hot dip galvanized carbon steel, the street light arm ensures a uniform surface free from rust and yellowing. The high tensile strength material and meticulous welding process guarantee durability and stability under various weather conditions.

• Design Flexibility: Available in a variety of shapes and designs, the street light arm can be customized to meet specific aesthetic and functional requirements. The design stage involves careful consideration of the arm's length and material composition.

• Mounting Bracket: The street light arm base is designed with slots to securely accommodate bolts, ensuring a firm attachment to the street poles.

• Standard Compliance: The manufacturing process adheres to BS5135 standards for welding and ASTM123-78 standards for galvanization, ensuring a high-quality finish and corrosion resistance.

• Fixtures and Fittings: The arm is equipped with sturdy fixtures and fittings, allowing for secure installation on street poles with a focus on maintaining alignment and stability.

Manufacturing Process:

• Designing Stage: The manufacturing process of Rax Industry Street Light Arms begins with a comprehensive design phase. This stage is critical in determining the shape, size, and overall aesthetic of the arm. Engineers and designers collaborate to create a design that meets the specific requirements for functionality and visual appeal. The design considerations include the length of the arm, the material composition, and the base bracket design to ensure a secure fit onto the street light poles.

• Fabrication: Once the design is finalized, the fabrication process commences. This involves the precise welding of steel tubes to a flat steel base, creating the structure of the street light arm. Reinforcements may be added between the base and the tube for extra stability. The welding process must conform to BS5135 standards, ensuring a strong and reliable connection.

• Surface Preparation: After fabrication, the street light arms undergo thorough surface preparation. This includes cleaning the welded joints to achieve a smooth and fine finish, free from spatter or slag. Sandblasting is often used to effectively clean the surface, preparing it for the next stage.

• Galvanization: To ensure the street light arms are protected from corrosion and have a long service life, they are subjected to a hot-dip galvanization process. This involves dipping the welded arms into molten zinc, creating a protective metal coating. This process is carried out according to ASTM123-78 standards, which guarantees a uniform and effective coating.

• Quality Control and Inspection: Following galvanization, the street light arms are subjected to strict quality control measures and inspections. This step ensures that the galvanized coating is of high quality and that the arms meet all the necessary standards for durability and safety.

• Assembly and Finishing: The final stage of the manufacturing process involves assembling the complete street light arm, including any fixtures and fittings. This may include attaching brackets for lamp holders and ensuring that cable ports are appropriately designed to protect service cables. The arms are then finished, with any final touches added to meet the specific requirements of each project.

• Packaging and Dispatch: Once the quality checks are passed, the street light arms are carefully packaged to protect them during transportation. They are then dispatched to the customer or the installation site, ready for assembly and use in enhancing the illumination of streets and pathways.

Technical specifications:

• Material Composition: Hot dip galvanized carbon steel, offering superior resistance to rust and corrosion.Designed with high tensile strength to support the weight of the lamp and withstand high-speed winds and adverse weather conditions.

• Design and Dimensions: The arm base features slots for bolt accommodation, ensuring a secure and stable attachment to the street poles.Available in standard measurements as per AS 1798, with common street pole heights of 6.5m, 10.5m, and 12.5m, and arm projections typically at 3m.Offers the flexibility to customize the length, shape, and design to meet specific project requirements.

• Manufacturing Standards: Welding processes adhere to BS5135 standards, ensuring strong and consistent joints.

• Galvanization: The galvanization process follows ASTM123-78 standards, providing a reliable corrosion-resistant coating.

• Surface Finish: Surfaces are thoroughly cleaned, often using sandblasting, to prepare for galvanization.A smooth, uniform zinc coating is applied to protect the arms from environmental factors.

• Fixtures and Fittings: The design includes sturdy fixtures and fittings to maintain the arm's position and alignment after installation.Round-edged cable entry openings with a minimum radius of 5mm to protect service cables from abrasion.

• Installation Requirements: The arm should be mounted at a height that provides adequate clearance from the ground to prevent vandalism and ensure optimal lighting coverage.The arm must be properly aligned to the road, house, pathways, and cable exits for efficient light distribution.

• Safety and Stability: The equipment used for lifting and mounting the street light arm must be capable of handling the entire structure safely.The installation process should be carried out under strict supervision to prevent misalignment and ensure the stability of the arm.

• Quality Assurance: Each street light arm undergoes a detailed inspection before dispatch to ensure adherence to quality standards.Jinmai Powerline guarantees the performance and longevity of their street light arms, ensuring customer satisfaction and reliability.

Conclusion

The Jinmai Powerline Street Light Arm is an essential component for any outdoor lighting system, offering a combination of durability, customization, and enhanced illumination. With a commitment to quality and a focus on customer needs, Jinmai Powerline is the go-to manufacturer for reliable and high-performance street light arms.

Customization Services:

If you require a customized Guy Clamp, Jinmai Powerline's skilled workers and knowledgeable engineers can provide a solution from design to delivery in a short period.

If you are interested in our Guy Clamp or have any questions, please feel free to contact us.
