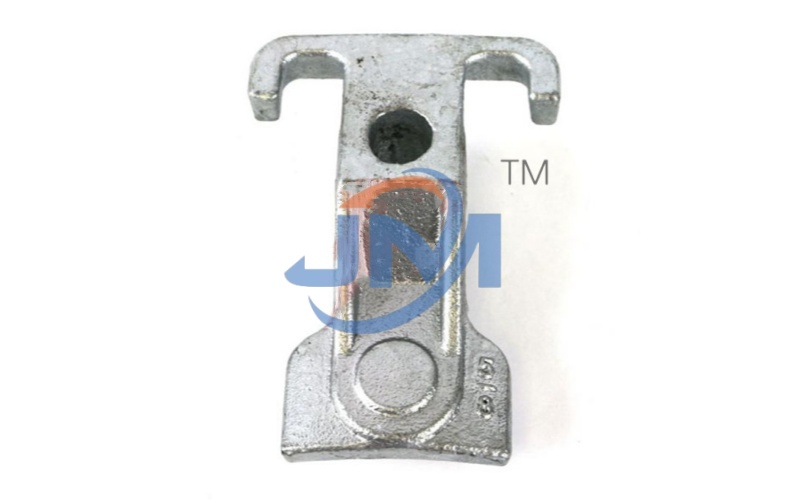

Introducing the premium Guy Hook from Jinmai Powerline, a reliable and robust solution for securing guy wires to utility poles. This high-quality guy hook is engineered to provide a systematic and efficient method for attaching guy wires, ensuring the stability and safety of your pole structures.
Versatile Design: The guy hook is expertly crafted to accommodate various types of guy loops or clamping devices, thanks to its ear design that accepts a wide range of bolt sizes and thimble diameters. Its channel back is adaptable to fit any pole diameter, making it a truly versatile choice for your utility needs.
Exceptional Strength: Made from cast ductile iron, this guy-hook attachment boasts a minimum tensile strength of approximately 10,000 lbs., ensuring that your guy wires are held securely in place. The product is also designed to resist pole splitting with its two spurs, providing additional reinforcement.
Durable Finish: The guy hook is hot-dip galvanized, which not only offers a protective finish against the elements but also meets the rigorous specifications of ASTM A153. This finish is particularly beneficial for ground surface applications, with an ultimate tensile strength of 21,000 lbs. at 45 degrees.
Integral Lad Spur: An integral feature of the guy hook is the lad spur, which is designed to offer additional support and stability when installing the hook, especially beneficial for wood pole installations.
Ease of Installation: It is recommended that the guy hook be installed under the head of the machine bolt to prevent premature bolt failure due to bending stress on the bolt threads. This careful design consideration ensures a longer lifespan and reliable performance.
ISO-Certified Quality: Jinmai Powerline, based in China, is an ISO-certified manufacturer, supplier, and exporter, ensuring that you receive products of the highest quality standards.
Material Selection: The process begins with the selection of high-quality cast ductile iron, chosen for its exceptional strength and durability. This material is essential for creating guy hooks that can withstand the tensile forces and environmental conditions they will be subjected to.
Design and Engineering: Before production begins, the design of the guy hook is finalized through detailed engineering. This includes the incorporation of features such as the ear design for versatile attachment, the integral lad spur for added stability, and the channel back for adaptability to various pole diameters.
Molding: Once the design is finalized, the molding process starts. This involves creating a mold that accurately reflects the design specifications of the guy hook. The mold is crucial for ensuring the correct shape and dimensions of the final product.
Casting: With the mold in place, the cast ductile iron is poured into the mold under controlled conditions. The casting process must be carefully monitored to ensure that the iron cools and solidifies uniformly, resulting in a strong and well-defined guy hook.
Heat Treatment: After the casting process, the guy hooks undergo heat treatment. This step is critical for enhancing the ductility and strength of the iron, ensuring that the final product can handle the required tensile strength of up to 10,000 lbs.
Machining: Once the casting and heat treatment are complete, the guy hooks are subjected to precision machining. This step involves shaping and finishing the hooks to ensure they have the correct dimensions, tolerances, and surface finish as per the design specifications.
Quality Control: Throughout the manufacturing process, quality control checks are performed at various stages. This includes inspecting the castings for defects, measuring the dimensions of the hooks, and testing the strength of the final product to ensure they meet the required standards.
Hot-Dip Galvanization: The guy hooks are then coated with a layer of zinc through the hot-dip galvanization process. This not only provides a protective layer against corrosion but also enhances the visual appeal of the product. The galvanization process must adhere to the ASTM A153 specifications to ensure the longevity of the guy hooks.
Final Inspection and Packaging: Before the guy hooks are packaged and shipped, they undergo a final inspection to confirm that they meet all quality standards and are free from defects. The packaging is designed to protect the hooks during transportation and storage.
Material: The guy hook is made from high-strength cast ductile iron, known for its excellent ductility and resistance to impact, making it ideal for withstanding the forces encountered in pole-line applications.
Tensile Strength: Minimum Tensile Strength: 10,000 lbs (44.48 kN). Ultimate Tensile Strength (ASTM A153): 21,000 lbs (92.02 kN) at 45 degrees.
Design Features: Accommodates a variety of guy loop or clamping devices with a generous thimble diameter. Adaptable to fit a range of pole diameters for secure attachment. Designed to resist pole splitting, providing additional support and stability. Offers extra support during installation, particularly beneficial for wood pole applications. Specifically designed for ease of installation on wood poles.
Coating: The guy hook is coated with a layer of zinc through the hot-dip galvanization process, which provides superior corrosion resistance and protection against environmental factors. This coating meets the specifications of ASTM A153.
Surface Finish: The surface of the guy hook is finished to be smooth and uniform, ensuring easy installation and reducing the risk of damage to guy wires or insulators.
Installation Recommendations: It is recommended to install the guy hook under the head of the machine bolt to prevent premature bolt failure due to bending stress on the bolt threads.
Compatibility: The guy hook is designed to be compatible with various types of guy loops, clamping devices, and pole materials, including wood and fiberglass.
Packaging: The guy hooks are packaged to protect against damage during transportation and storage, ensuring that they arrive in pristine condition.
Certifications: ISO-Certified: Jinmai Powerline holds ISO certification, which ensures that the manufacturing processes and product quality are in compliance with international standards.
Dimensions: The specific dimensions of the guy hook, including the length, width, and height, are available upon request to ensure compatibility with the customer's specific pole-line hardware requirements.
Weight: The weight of the guy hook varies depending on the size and design but is optimized for balance between strength and ease of handling.
Jinmai Powerline's Guy Hook has established its leading position in the field of pole-line hardware through its superior design, robust construction, and precise manufacturing processes. This Guy Hook not only meets the industry's basic requirements for strength and durability but also offers additional installation convenience and pole protection through its unique design features, such as the ear design and integral lad spur. The hot-dip galvanized surface treatment further enhances its corrosion resistance, ensuring long-term stability even in harsh environments.
The detailed listing of technical specifications provides potential customers with comprehensive product information, assuring them that Jinmai Powerline's Guy Hook can meet their strict demands for quality and performance. The acquisition of ISO certification is a strong testament to Jinmai Powerline's commitment to providing high-standard products and services.
In summary, whether it is in terms of ease of installation, tensile strength, corrosion resistance, or overall durability, Jinmai Powerline's Guy Hook demonstrates its strength as the preferred solution for pole-line support in the market. For professionals in the utility and telecommunications industries seeking reliable, efficient, and cost-effective pole-line support solutions, Jinmai Powerline's Guy Hook is unquestionably a choice that merits their trust.
If you require a customized Guy Clamp, Jinmai Powerline's skilled workers and knowledgeable engineers can provide a solution from design to delivery in a short period.
If you are interested in our Guy Clamp or have any questions, please feel free to contact us.
