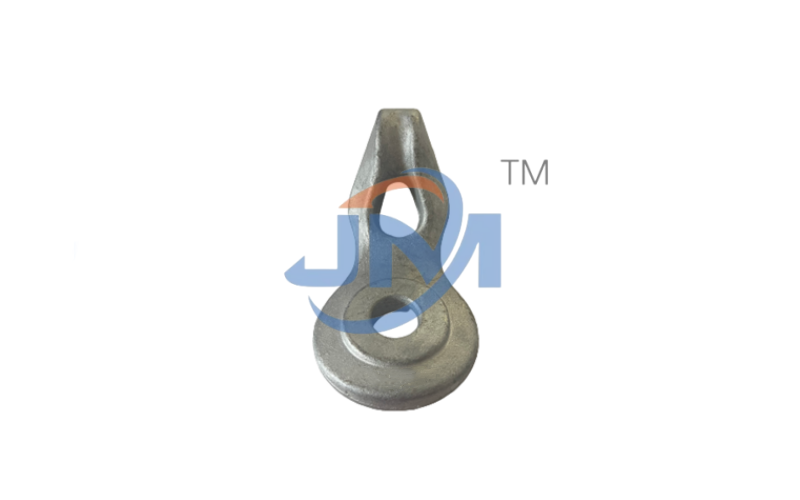

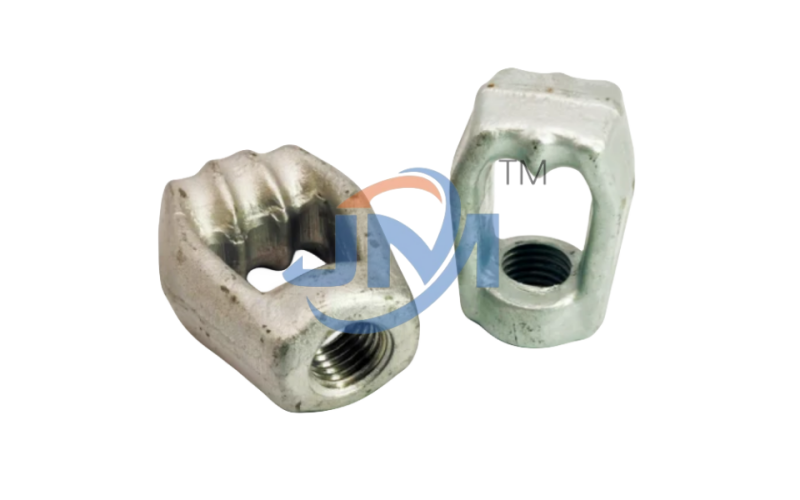

Eye Nut

Product description:

Our Oval Eye Nut, Clevis Eye Nut, and Thimble Eye Nut are premium quality fasteners designed for pole line hardware and overhead line construction. These robust and reliable eye nuts are engineered for ease of installation and are essential for maintaining the integrity of power line and pole constructions.

Product features:

  • Diverse Types: Available in Oval, Clevis, and Thimble varieties to cater to a wide range of applications.

  • Material Excellence: Made from high-quality forged steel for superior strength and durability.

  • Corrosion Resistance: Finished with hot dip galvanization to protect against environmental factors and ensure longevity.

  • Versatile Applications: Ideal for dead ending, back guying, and attaching pole head guys on threaded ends of cross bolts.

  • Load-Rated Options: Some models are designed for vertical lifting, while others are suitable for guiding wires and tie downs.

  • Customizable Specifications: Available in various sizes, materials, and finishes to meet specific project requirements.

Manufacturing Process:

Step 1: Material Selection:The first step in the manufacturing process involves selecting the appropriate material for the eye nuts. High-quality steel rods are chosen for their strength and durability. The material selection depends on the type of eye nut being manufactured, with options including aluminum, stainless steel, and proprietary alloys for specific applications.

Step 2: Heating the Material:The selected steel rods are heated to achieve a red-hot state. This is a critical step as it prepares the material for the next phase of manufacturing, ensuring it is malleable and workable for the forging process.

Step 3: Drop Forging Method:The heated steel rods are then subjected to the drop forging method. This involves the application of localized compressive force using specialized tooling. The process shapes the steel into the desired form of the eye nut, including the looped head and the eye.

Step 4: Shaping and Polishing:After the initial forging, the eye nuts are shaped further to achieve the final design, which includes the thimble eye nut, oval eye nut, and clevis eye nut variations. The rough edges are smoothed out, and the eye nuts are polished to remove any imperfections and to prepare them for threading.

Step 5: Threading:The threading is one of the most critical aspects of the eye nut's functionality. The threads within the eye nuts are carefully drilled using bench drilling machines, ensuring precision and compatibility with the corresponding bolts.

Step 6: Surface Treatment:To enhance the durability and longevity of the eye nuts, they undergo various surface treatments. The most common treatment is hot dip galvanization, which provides a protective coating against corrosion. Other finishes include anodizing, gold plating, and zinc plating, depending on the specific requirements of the application.

Step 7: Quality Control:Each eye nut undergoes rigorous quality control checks to ensure that they meet the design specifications and performance standards. This includes testing for strength, thread accuracy, and overall dimensions.

Step 8: Packaging and Shipping:Finally, the eye nuts are packaged appropriately to protect them during transit and ensure they reach the customer in pristine condition. They are then shipped to customers worldwide, ready for use in various construction and utility projects.

Technical specifications:

  • Material: Aluminum, Steel, Stainless Steel, Copper-based alloys, Hardened Steel, and Proprietary Alloys.

  • Finish: Galvanized, Anodized, Gold Plated, Tin Plated, Silver Plated, Zinc Plated, and Zinc Chromate.

  • Coating: Black Oxide for non-dimensional changes and enhanced corrosion resistance.

  • Design: Oval or round shape for easy use, with threads drilled by bench drill machines.

  • Dimensions and Load Capacity: Vary based on the model and application, ensuring the right fit and strength for every job.

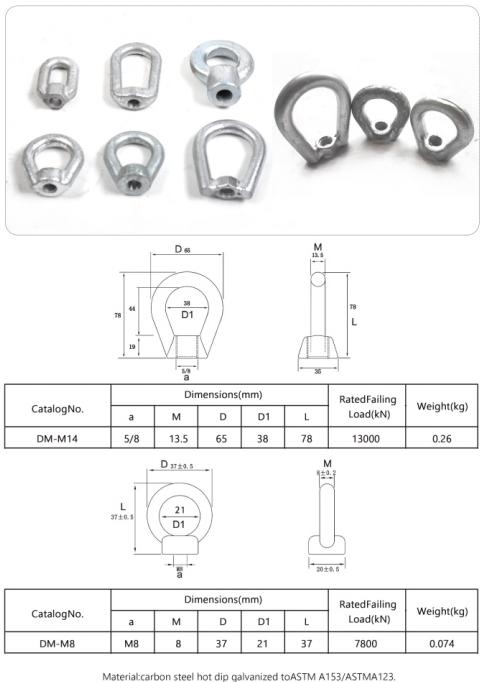

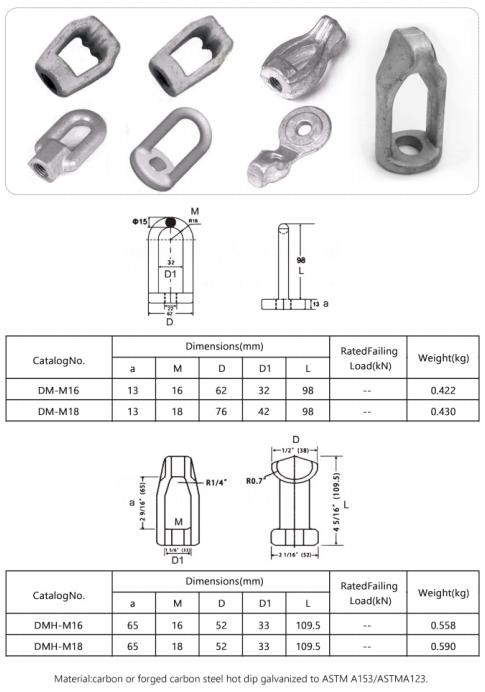

Eye NutEye Nut


Conclusion:

Jinmai Powerline's manufacturing process for eye nuts is a blend of traditional forging techniques and modern precision engineering. This ensures that every eye nut produced is of the highest quality, capable of withstanding the demands of rigorous applications in pole line and overhead line construction. Our commitment to excellence and customer satisfaction is reflected in every eye nut we manufacture.



Customization Services:

If you require a customized Guy Clamp, Jinmai Powerline's skilled workers and knowledgeable engineers can provide a solution from design to delivery in a short period.

If you are interested in our Guy Clamp or have any questions, please feel free to contact us.
