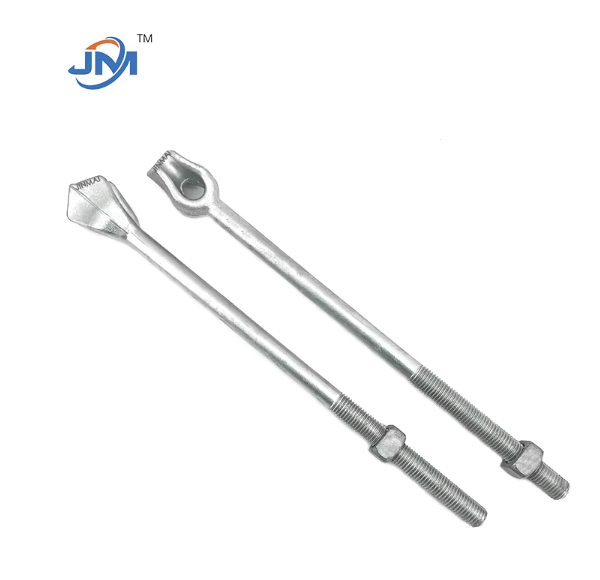

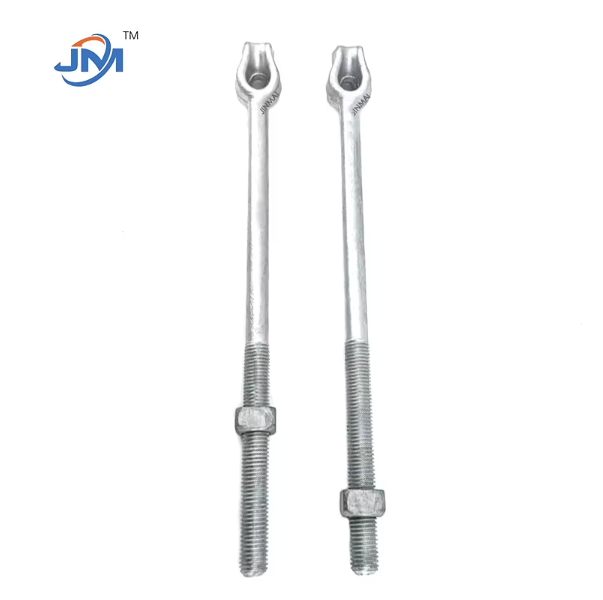

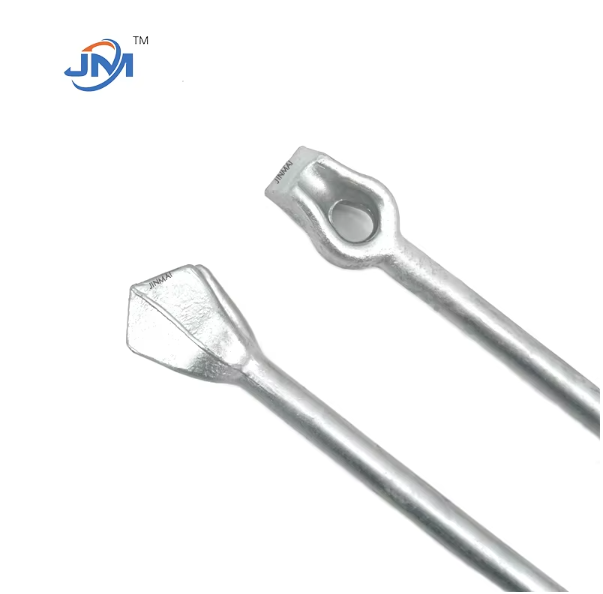

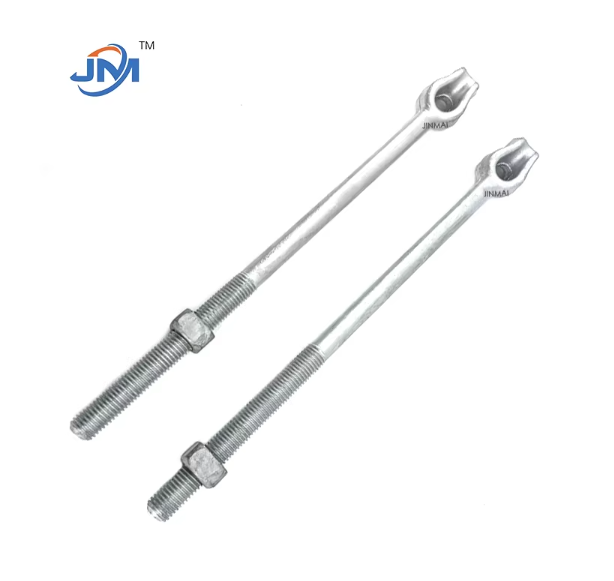

Thimble Eye Rod (eye bolt/thimble eye rod) is a vital connection and anchoring hardware in power transmission, communication wiring and various tension support systems. It consists of a rod body with a solid forged eye ring (usually embedded with a wear-resistant collar) at one end and a standard external thread at the other end. This unique design makes it an ideal choice for connecting insulator strings, hanging conductors, fixing guy wires or as a terminal for various rigging. The Thimble Eye Rod produced by Handan Jinmai Fastener Manufacturing Co., Ltd. is manufactured in strict accordance with international standards and serves the global power infrastructure, communication network construction and industrial applications with its excellent strength, durability and reliability.
1. Excellent structural strength: Forged or manufactured with high-quality alloy steel, the rod body and eye ring parts are precision machined and heat treated to ensure that they can withstand extremely high tensile loads and dynamic impact forces, ensuring line safety.
2. Excellent corrosion resistance: The surface is treated with advanced hot-dip galvanizing technology, and the zinc layer is thick and uniform, providing long-term anti-corrosion protection, adapting to various harsh outdoor environments (such as high humidity, coastal salt spray, industrial pollution, etc.), and significantly extending the service life.
3. Safe and reliable connection: The eye ring is designed to be smooth and fluent, with a built-in high-strength thimble, which effectively protects the wire rope or cable passing through it, prevents it from being worn and cut, and optimizes the direction of force transmission and reduces stress concentration.
4. Standardization and versatility: The threaded end meets international general standards (such as ISO, DIN, ANSI, etc.), and can be conveniently and firmly connected with various standard nuts, adjusters (Turnbuckle) or other hardware, which is easy to install and has strong interchangeability.
5. Precision manufacturing: Accurate dimensions and strict tolerance control ensure smooth installation and uniform force.
Handan Jinmai Fastener Manufacturing Co., Ltd. implements strict quality control on the production process of Thimble Eye Rod:
1. Material selection: Select high-strength alloy steel bars that meet the standards.
2. Forging/forming: The eye ring is usually formed by hot forging to obtain dense metal streamlines and optimal mechanical properties; the rod body is rolled or turned to achieve precise dimensions.
3. Machining: The eye ring is precisely turned and drilled to ensure a smooth inner hole; the end of the rod body is turned to produce high-precision threads.
4. Heat treatment: A key process. The finished product is subjected to quenching and tempering heat treatment (quenching + high-temperature tempering) to significantly improve the strength (tensile strength, yield strength) and toughness of the material to achieve the required performance level (such as grade 8.8).
5. Surface treatment: After thorough pre-treatment (pickling, plating assistance), hot-dip galvanizing is used. The product is completely immersed in molten zinc liquid to form a strong, dense, and standard-thick zinc-iron alloy layer and pure zinc layer.
6. Quality inspection: Dimensional inspection, thread gauge inspection, and visual inspection are carried out throughout the process. Destructive mechanical property tests (tensile tests) and zinc coating thickness/adhesion tests (such as hammer tests) are carried out on key batches. Products can only be packaged and shipped after meeting the standards.
Material: High-quality carbon structural steel or alloy structural steel (such as Q235B, 35#, 45#, 40Cr, 42CrMo, etc., selected according to strength requirements).
Strength grade: 4.8 and 8.8 are commonly provided, and higher strength grades (such as 10.9 and 12.9) can be customized according to requirements.
Thread specifications: Metric or British (UNC/UNF) standard threads, common specifications such as M16, M20, M24, M30, M36, 5/8", 3/4", 7/8", 1", 1-1/4", etc. Thread length meets standard or customer requirements.
Rod diameter (d): Wide range, from M12 / 1/2" to M64 / 2-1/2" or larger, depending on load requirements.
Eye ring inner diameter (D): Designed to match the rod diameter and ring specifications to ensure sufficient wire rope bending radius.
As a key connector in power transmission and distribution, communication networks and industrial applications, the performance and reliability of Thimble Eye Rod (eye bolt/ring eye rod) are crucial. Handan Jinmai Fastener Manufacturing Co., Ltd., with nearly 20 years of professional manufacturing experience in the field of power fittings and fasteners, is committed to providing customers with the highest quality Thimble Eye Rod solutions.
Choosing Handan Jinmai, you are choosing:
Quality benchmark made in China
Reliable products that meet international standards
Professional technical support and services
Highly competitive prices
