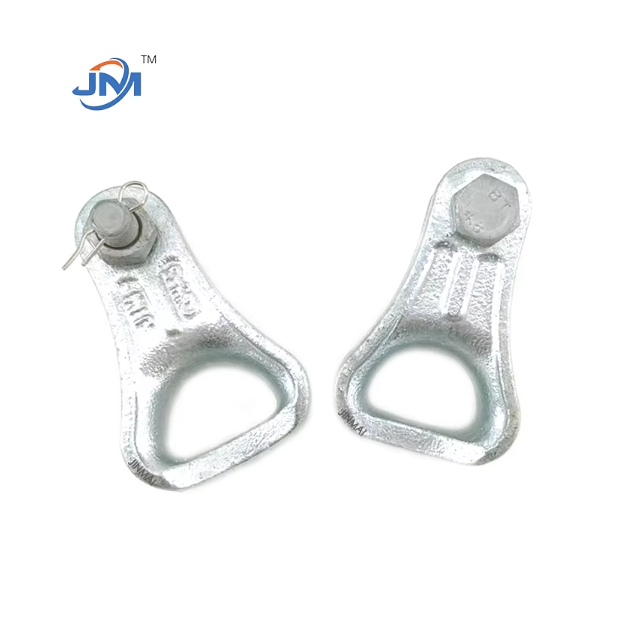

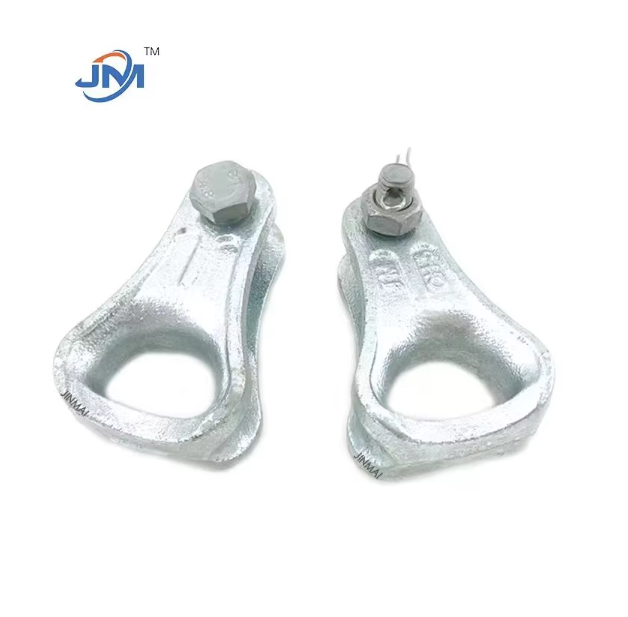

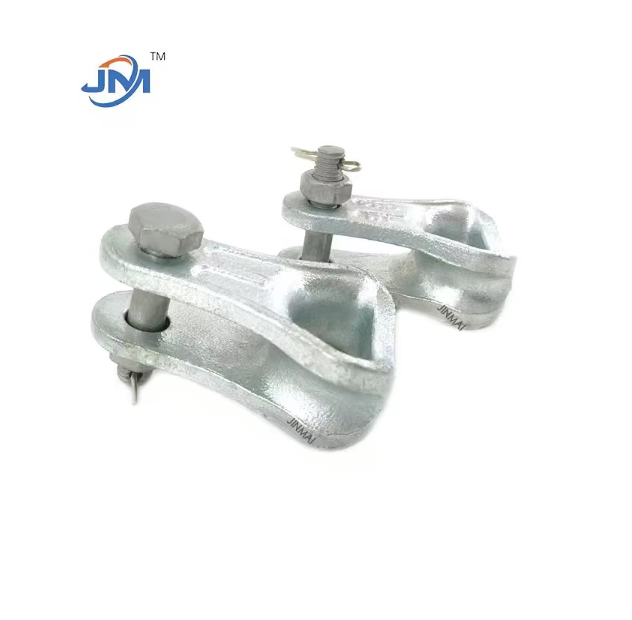

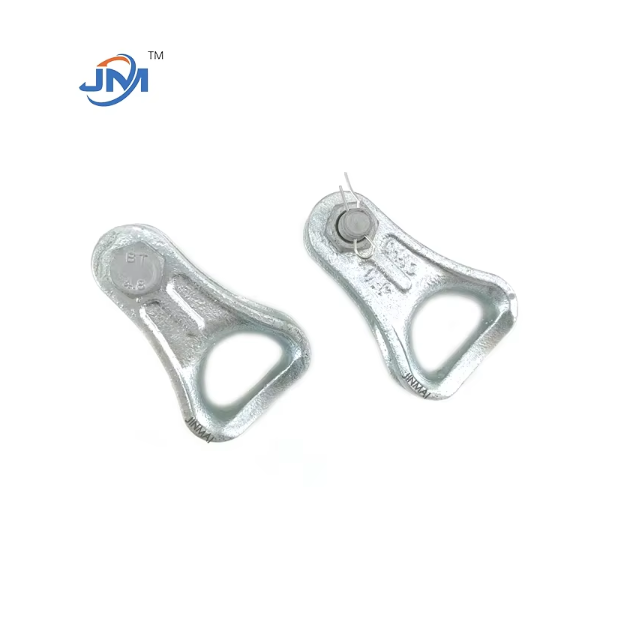

Thimble Clevis (split pins) are key connectors in power fittings and optical cable lines. They are primarily used to secure and connect various types of wire clamps, insulators, and cable tensioning devices, ensuring the stability and safety of power transmission systems. Handan Jinmai Fastener Manufacturing Co., Ltd., a professional power fittings manufacturer, offers customized Thimble Clevis solutions, supporting custom drawings and samples to meet diverse project requirements. These products are widely used in power transmission lines, optical communication cables, railway electrification, and other fields, adapting to a variety of conductor specifications and installation scenarios.
1. High-Strength Material: Made of high-quality carbon steel (such as Q235) or alloy steel, ensuring high tensile strength and fatigue resistance.
2. Corrosion Resistance: The surface is hot-dip galvanized to effectively resist oxidation and corrosion in harsh environments, extending service life.
3. Customization: We support custom designs, allowing us to adjust dimensions, hole diameters, and slot widths to meet customer needs.
4. High Reliability: Rigorous load testing ensures stable performance under extreme climate and high-pressure conditions.
1. Raw Material Selection: Steel that meets international standards is selected to ensure base material purity and mechanical properties.
2. Precision Machining: High-precision forming is achieved using CNC punching, drilling, and milling machines, with tolerances within ±0.1mm.
3. Heat Treatment: Quenching and tempering processes enhance product hardness and toughness to meet high-strength requirements.
4. Surface Treatment: Hot-dip galvanizing is used throughout the entire production process, with a coating thickness of ≥85μm, in compliance with ASTM B695.
5. Quality Inspection: 100% inspection includes salt spray testing (≥72 hours of rust-free) and destructive load testing to ensure zero-defect delivery.
Materials: Q235 carbon steel, 45# steel, 20CrMnTi alloy steel
Size Range: Diameter Φ10mm–Φ50mm, slot width adjustable from 5–30mm
Standards: GB/T 20065-2018, ASTM A307, DIN 644
Surface Treatment: Hot-dip galvanized (thickness ≥ 85μm)
Applicable Conductors: Suitable for steel stranded wire, aluminum stranded wire, OPGW fiber optic cable, etc.
Failure Load: ≥120kN (depending on model)
Handan Jinmai Fastener Manufacturing Co., Ltd. leverages over a decade of experience in power fitting manufacturing, combining advanced production equipment with a strict quality control system to provide customers with high-performance Thimble Clevis and customized solutions. Our products have been used in numerous large-scale power projects both domestically and internationally, earning customer trust with their high durability and precise fit. For further information or product customization, please contact us via:
- Email: [email protected]
- WhatsApp/WeChat: +86 13831001495
