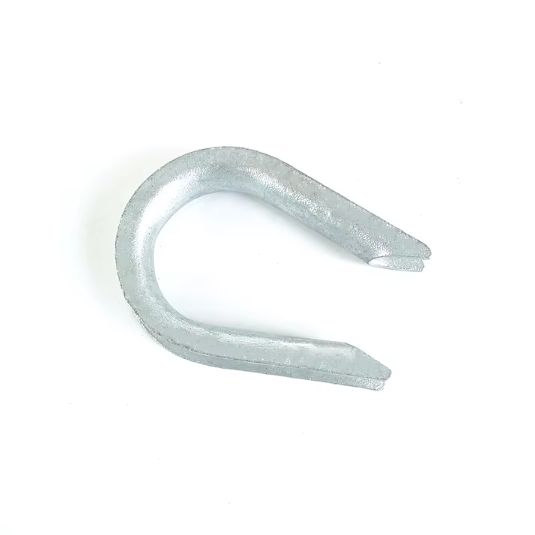

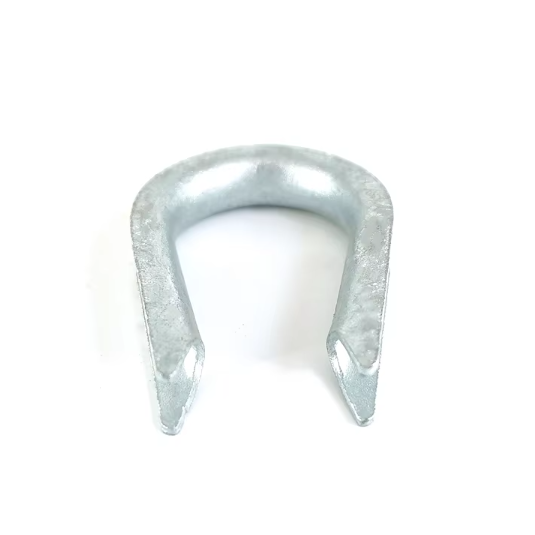

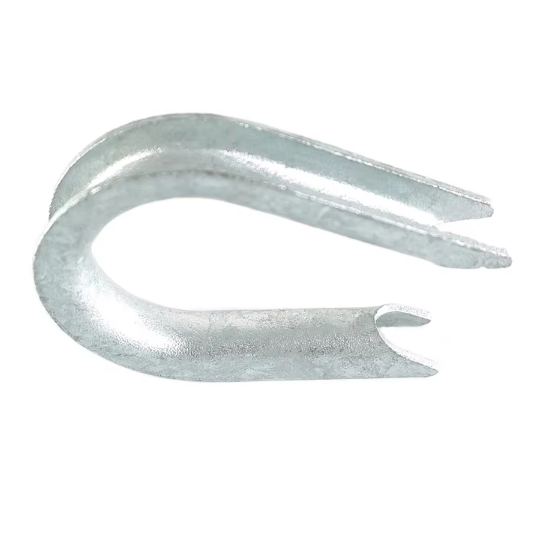

Thimble

Product description:

Thimble is an indispensable metal connection component in the power transmission and distribution system, specially designed for cable terminal head protection and steel cable fastening.Usually used with bow stay.Handan Jinmai Fastener Manufacturing Co., Ltd. uses high-strength alloy steel for manufacturing. The products undergo special surface treatment, which can effectively improve the mechanical strength and weather resistance of cable lines. They are widely used in power transmission and transformation towers, communication base stations, bridge rigging and other scenarios, ensuring the long-term stable operation of power transmission in Xiyong.

Product features:

1. Military-grade material guarantee

   Made of Q235B/45# carbon steel and 304 stainless steel, with a tensile strength of over 500MPa, it can meet the weighing requirements in extreme environments.

2. Triple anti-corrosion system

   Hot-dip galvanizing + passivation treatment + epoxy coating optional combination, passed 2000 hours salt spray test, suitable for coastal and industrial corrosion environment.

3. Precision cold forging

   The error is controlled within ±0.15mm, the inner wall is smooth and burr-free, avoiding wear of the cable insulation layer.

4. Intelligent assembly design

   The chamfered opening structure supports flexible adaptation of 5 types of cables, increasing installation efficiency by 40%.

5. Full specification coverage

   We provide standard sizes from φ12mm to φ80mm, support non-standard customization, and deliver samples within 72 hours at the fastest.

Manufacturing Process:

1. Raw material sorting：The spectrometer detects the element content to ensure compliance with ASTM A510 standards.

2. Precision cold forging: 800-ton hydraulic press with tungsten steel mold for five-pass cold extrusion.

3. Heat treatment strengthening: The mesh belt continuous furnace is used for tempering treatment, and the Rockwell hardness is stabilized at HRC28-32.

4. Surface treatment: The fully automatic galvanizing line achieves 80μm uniform coating, combined with chromate sealing process.

5. Quality inspection: 100% inspected by three-coordinate measuring machine, with 5000N tensile test.

Technical specifications:

• Material composition: high-quality carbon structural steel/austenitic stainless steel

• Specification range: inner diameter 12-80mm, wall thickness 3-12mm

• Breaking load: ≥1.5 times the nominal working load (according to GB/T25897 standard)

• Temperature resistance range: -40℃ to +260℃ continuous operation

• Corrosion resistance level: Class 5 (ISO1461 hot-dip galvanizing standard)

• Implementation standard: DL/T 768.7-2021 General technical conditions for power fittings


Conclusion：

As the star product of Handan Jinmai Fastener Manufacturing Co., Ltd., the Thimble series embodies 23 years of experience in the research and development of power fasteners. Passing ISO9001:2015 quality management system certification, equipped with fully automatic testing lines and MES production traceability system, we not only ensure that our products 100! Meet national standards, but also provide customized solutions for UHV projects. Our products have been exported to 32 countries and have served more than 500 power engineering projects around the world. With the reputation of "zero quality accidents", we have become the preferred supplier in the industry.
