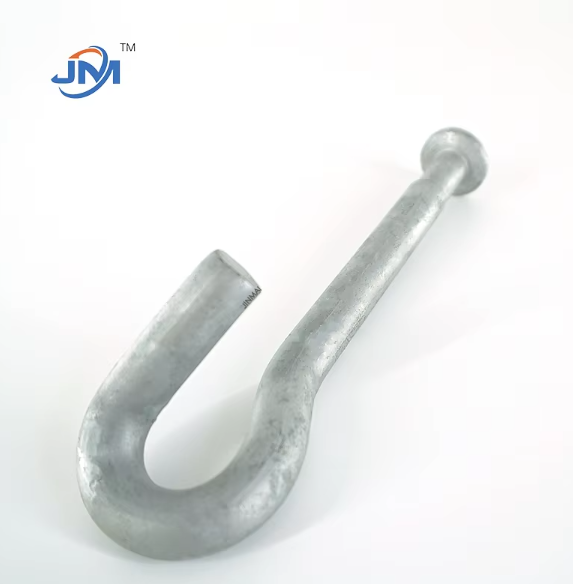

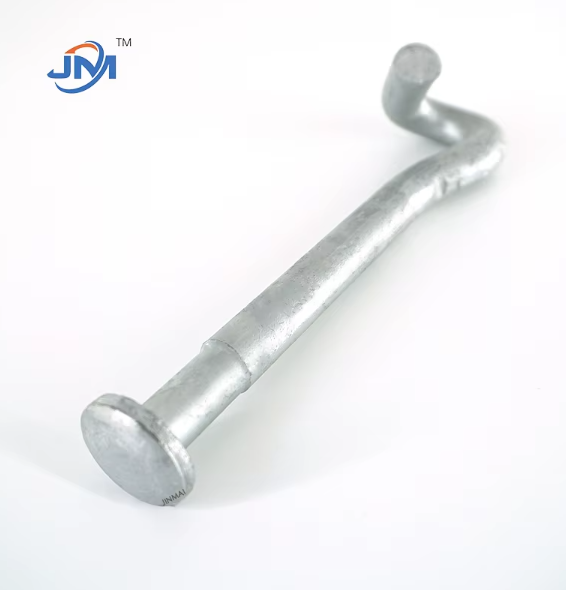

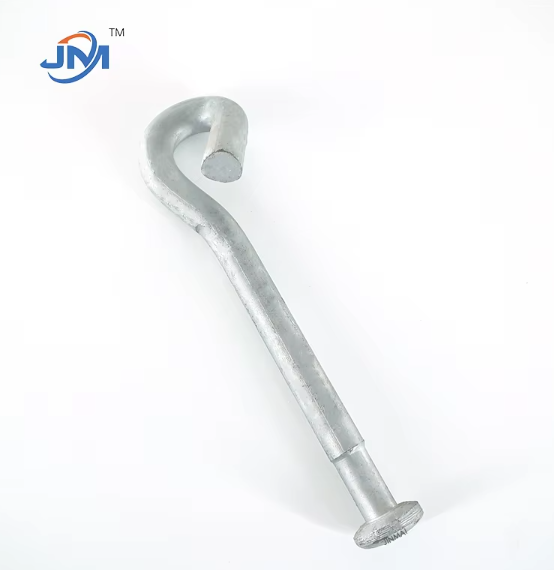

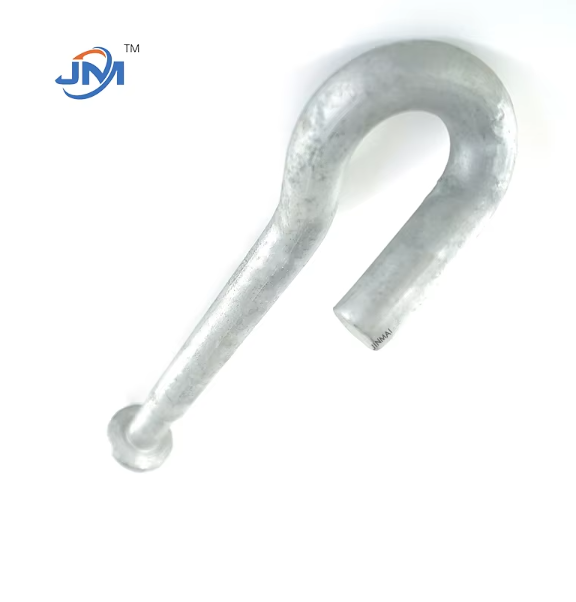

Pig Tail Bolt is a special fastener designed for power fittings, optical cable communications and aerial work scenarios. Its unique ring-shaped head design facilitates hanging, pulling and safe fixing, and is widely used in high-voltage transmission line towers, communication base stations, bridge steel structures and other fields. Handan Jinmai uses precision die forging technology to ensure that the bolts can maintain high strength and corrosion resistance in extreme environments.
1. Multifunctional ring head
The ring head can quickly connect ropes and hooks to achieve the dual functions of high-altitude operation safety protection and equipment lifting.
2. Military-grade materials
Using Q235 carbon steel or 304 stainless steel substrate, the tensile strength is more than 500MPa, and it can withstand a temperature difference of -40℃ to 120℃.
3. Super strong anti-corrosion coating
The hot-dip galvanized layer thickness is ≥80μm, passed the 2000-hour neutral salt spray test, and is suitable for coastal high salt spray environments.
4. Intelligent anti-loosening design
The threaded part is rolled and formed twice, and the self-locking nut can resist the loosening risk under 8-level vibration conditions.
5. Full size coverage
Provide M12-M30 nominal diameter, 50-500mm length specifications, support non-standard customization, and adapt to European/American standard flange systems.
1. Precision die forging
1600-ton hydraulic press die forging, eliminating internal pores, and grain size above grade 8.
2. Intelligent heat treatment
PLC temperature-controlled mesh belt furnace is used for quenching and tempering, and the hardness is stably controlled in the range of HRC28-32.
3. Nano-level surface treatment
The six-station automatic galvanizing line realizes zinc-aluminum rare earth alloy coating, and the adhesion reaches ISO 2409 Class 0.
4. Digital detection
Three-coordinate measuring instrument + spectral analysis double quality inspection, 100% full inspection of thread accuracy (6g level) and material composition.
Material standard: GB/T 700 Q235B / ASTM A36 / SUS304
Strength grade: 8.8/10.9 (carbon steel) / A2-70 (stainless steel)
Coating thickness: hot-dip galvanizing ≥80μm / Dacromet coating ≥12μm
Torque value range: M12 bolt standard installation torque 85-110N·m (galvanized parts)
Certification system: ISO 9001:2015 / UL certification / TUV seismic certification
Packing method: PE bag + anti-rust paper + wooden box triple protection, support neutral customized packaging.
As a benchmark enterprise in China's power fastener industry, Handan Jinmai Fastener Manufacturing Co., Ltd. has been deeply engaged in the field of special bolts for 18 years and has built a national CNAS laboratory and a full-process digital workshop. Our Pig Tail Bolt series products have been successfully applied to more than 300 key projects such as the Baihetan Hydropower Station and the China-Europe Railway Express communication base station, exported to 52 countries and passed CE/ROHS certification.
For different application scenarios, we provide:
✅ Engineering site survey service
✅ Wind tunnel simulation test report
✅ 10-year warranty commitment
✅ Global 48-hour emergency response
Visit the official website now to obtain the "White Paper on Power Fixture Fastening System Solutions", or contact the technical team to customize a dedicated safety connection solution!
Official website: https://www.jinmaipowerline.com/
Email: [email protected]
Contact: WhatsApp/wechat: +86 13831001495
