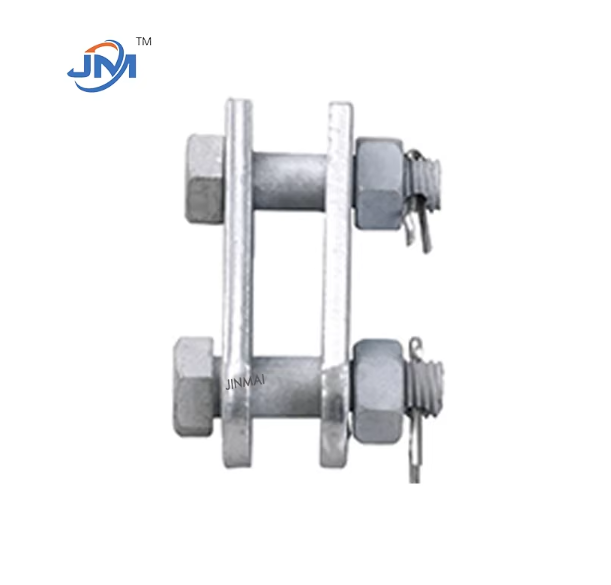

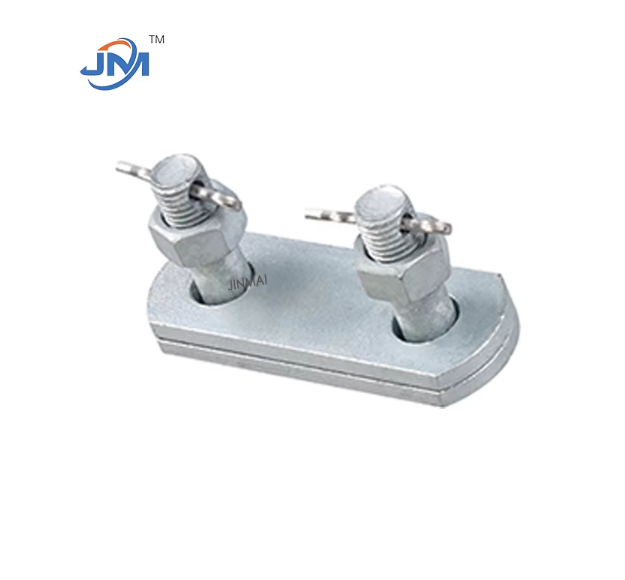

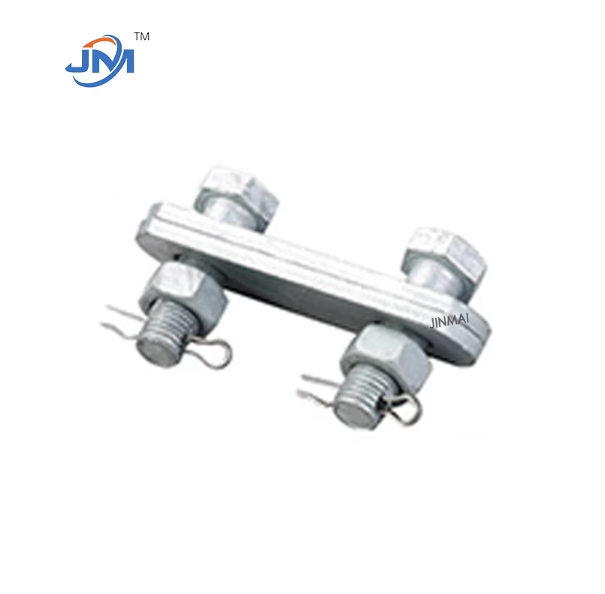

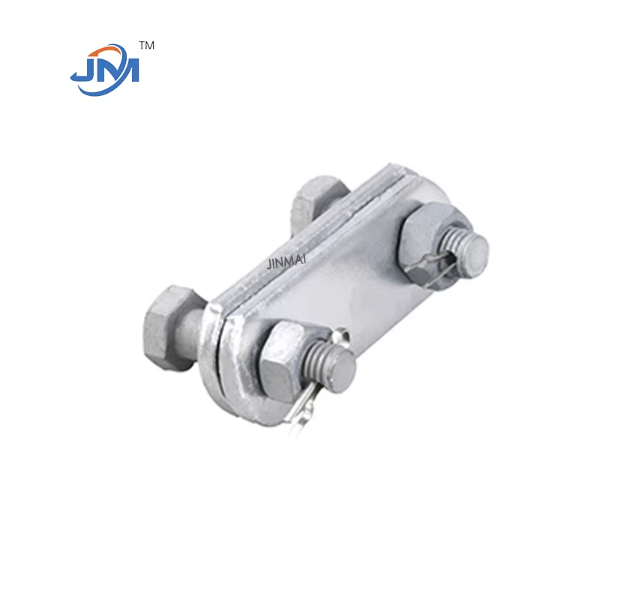

Connector Plate is a key mechanical connection component in the power fittings and optical cable line system, mainly used to fix and transfer loads between towers and components such as tension clamps, suspension clamps, insulator strings, and cable pulling devices. Its function is similar to a "line joint", which directly affects the structural stability of power lines and the operational reliability of communication optical cables.
Jinmai Connector Plate takes "high strength, high corrosion resistance, high compatibility, and customization" as its core advantages to meet the stringent requirements of power lines:
1. High strength and durability Made of high-quality Q235A/Q345B carbon steel (customizable stainless steel material), it is forged or stamped, with a tensile strength of 410-630MPa and a yield strength of ≥235MPa (Q235A). It can withstand the tension, pressure and bending load of the line for a long time, ensuring that the connection parts are free of deformation and breakage.
2. Excellent anti-corrosion performance The surface treatment adopts hot-dip galvanizing (zinc layer thickness ≥85μm, in line with GB/T 13912-2020 standard) or electrostatic spraying (coating thickness ≥60μm, in line with GB/T 18684-2002 standard), which can effectively resist the erosion of harsh environments such as outdoor acid rain, salt spray, and ultraviolet rays, and the service life can reach more than 20 years.
3. Flexible customization service supports drawing/sample customization, and can adjust the size (length 50-500mm, width 20-150mm, thickness 3-20mm), shape (flat plate, curved plate, special shape) and connection method (number and position of bolt holes) to meet the special needs of different engineering scenarios (such as mountain lines, cross-sea optical cables, etc.).
1. Raw material selection: Carbon steel materials from well-known steel mills such as Baosteel and Anshan Iron and Steel are selected, and the material composition is tested by a spectrometer to ensure that it does not contain harmful impurities such as sulfur and phosphorus.
2. Forming and processing:
Flat type: Use CNC punching machine to form in one time to ensure dimensional accuracy;
Special-shaped type: Use forging technology to improve material density and mechanical properties.
3. Heat treatment strengthening: Forged parts are tempered (quenching temperature 850℃, tempering temperature 550℃) to give the material a good balance of strength and toughness.
4. Surface treatment:
Hot-dip galvanizing: Use a fully automatic galvanizing line, the zinc layer is uniform and dense;
Plastic spraying: Use electrostatic spraying equipment, and the coating adhesion reaches level 1 of GB/T 9286-1998 standard.
5. Quality inspection: Each batch of products must pass size inspection (vernier caliper, micrometer), mechanical property inspection (tensile testing machine), anti-corrosion performance inspection (salt spray test chamber) and appearance inspection to ensure compliance with GB/T 2314-2008 "General Technical Requirements for Power Fittings" and customer requirements.
Size range Length: 50mm-500mm; Width: 20mm-150mm; Thickness: 3mm-20mm
Tensile strength Q235A: ≥410MPa; Q345B: ≥630MPa
Yield strength Q235A: ≥235MPa; Q345B: ≥345MPa
Zinc layer thickness (hot-dip galvanizing) ≥85μm (in line with GB/T 13912-2020 standard)
Coating thickness (spray coating) ≥60μm (in line with GB/T 18684-2002 standard)
Aperture error ≤±0.5mm (in line with GB/T 1804-2000 standard m level)
Surface roughness Ra≤6.3μm
Applicable ambient temperature -40℃~+80℃
Applicable altitude ≤4000m
Implementation standard GB/T GB/T 2314-2008 General Technical Requirements for Power Fittings, GB/T 5075-2016 Terminology of Power Fittings
As a professional manufacturer of power fittings and optical cable line accessories, Handan Jinmai Fastener Manufacturing Co., Ltd. always adheres to the concept of "quality first, customer first". Relying on the production capacity of its own factory, flexible customized services and strict quality control system, it provides customers with high-quality and highly reliable Connector Plate products. Whether it is a high-voltage transmission line or an optical cable communication project, Jinmai's Connector Plate can meet your needs and provide a solid guarantee for the stable operation of the line.
If you need to customize the Connector Plate or learn more about the product information, please feel free to contact us:
- Email: [email protected]
- WhatsApp/Wechat: +86 13831001495
We will respond to your needs within 24 hours and look forward to establishing a long-term cooperative relationship with you!
