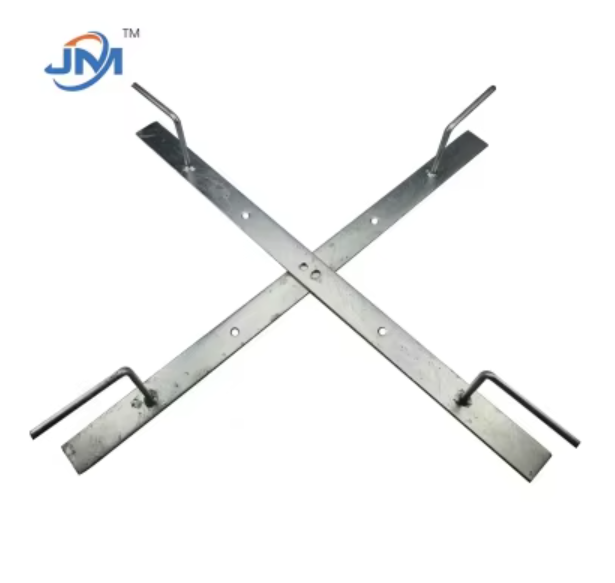

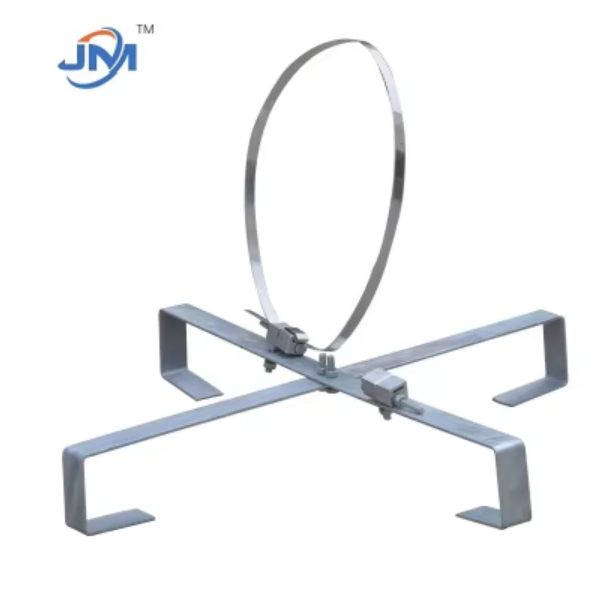

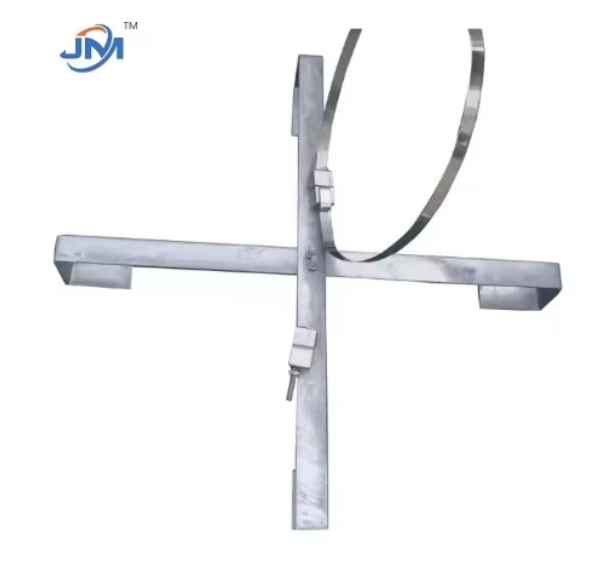

The Cable Rack produced by Handan Jinmai Fastener Manufacturing Co., Ltd. is an efficient cable management solution designed for power systems, communication engineering and building wiring. The product is made of high-strength steel or aluminum alloy, and the surface is treated with anti-corrosion, which is suitable for a variety of complex indoor and outdoor environments. Its modular design can be flexibly combined, supporting the standardized wiring and layered fixing of power cables and optical fiber cables, effectively improving line safety and maintenance efficiency, and is an ideal choice for substations, data centers, and industrial plants.
1. High-strength structure
- Made of high-quality Q235 carbon steel/6063 aluminum alloy, it has excellent compression and bending resistance, and the single-layer load-bearing capacity is up to 500kg.
2. Anti-corrosion and durable
- Hot-dip galvanizing (average zinc layer ≥80μm) or electrostatic spraying process (RAL standard color optional), the salt spray corrosion resistance life exceeds 20 years.
3. Flexible installation
- Standardized hole design, supports bolt fixing, welding or embedded installation, and adapts to the needs of different engineering scenarios.
4. Safety protection
- Edge rounding + anti-slip rubber pad to avoid cable wear; the spacing of multi-layer brackets is adjustable to ensure heat dissipation and maintenance space.
5. Modular expansion
- Supports unlimited horizontal/vertical expansion, compatible with corner and suspension components, and meets the customization needs of complex wiring systems.
1. Raw material selection
- Select steel or aviation-grade aluminum alloy that meets the GB/T 700 standard, and use a spectrometer to detect the material composition.
2. Precision machining
- Laser cutting ensures the dimensional accuracy of the parts (error ≤ 0.2mm), and robot automatic welding is used after stamping, and the weld strength reaches more than 90% of the parent material.
3. Surface treatment
- The hot-dip galvanizing production line realizes fully automatic pickling, plating and passivation; the spraying line uses Swiss Golden Horse spray gun, and the coating uniformity reaches Sa2.5 level.
4. Strict quality inspection
- Triple quality inspection process: ultrasonic flaw detection to detect weld defects, salt spray test machine to verify anti-corrosion performance, and load test to simulate extreme working conditions.
Material options: Q235 carbon steel (thickness 2.5-6mm) / 6063-T5 aluminum alloy (thickness 3-8mm)
Standard length: single beam 2000mm (customizable 1000-6000mm)
Layer height range: 150-500mm (adjustable every 50mm)
Operating temperature: -40℃ to +120℃ (galvanized type) / -30℃ to +80℃ (spray type)
Fire rating: in accordance with IEC 60331-2 standard (continuous combustion tolerance ≥90 minutes)
Implementation standards: GB/T 228.1 (mechanical properties), IEC 61537 (general specifications for cable management)
As a benchmark enterprise in China's power hardware industry, Handan Jinmai Fastener Manufacturing Co., Ltd. has been deeply involved in the field of cable racks for 18 years. With its fully automated production line and ISO 9001 quality management system, it provides high-reliability Cable Rack solutions to more than 50 countries around the world. Our products are CE and RoHS certified, support ODM/OEM customization services, and provide full technical support from engineering design to after-sales maintenance. Choosing Jinmai means choosing professional, efficient and lasting protection - to put every cable back in place safely and lay a solid foundation for your power network.
Handan Jinmai Fastener Manufacturing Co., Ltd.
Official website: https://www.jinmaipowerline.com/
Email: [email protected]
Contact: WhatsApp/wechat: +86 13831001495
