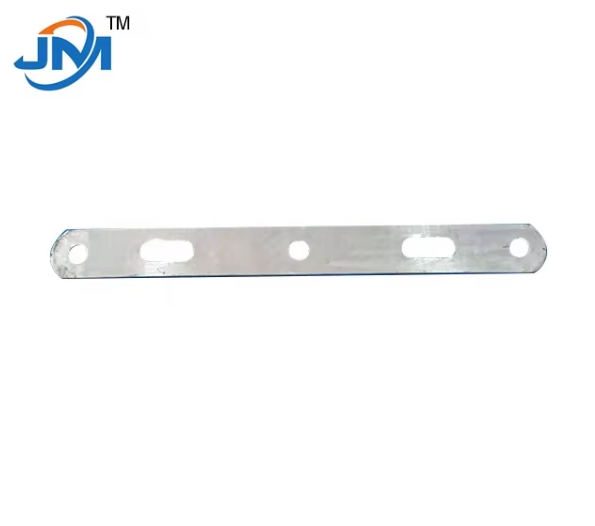

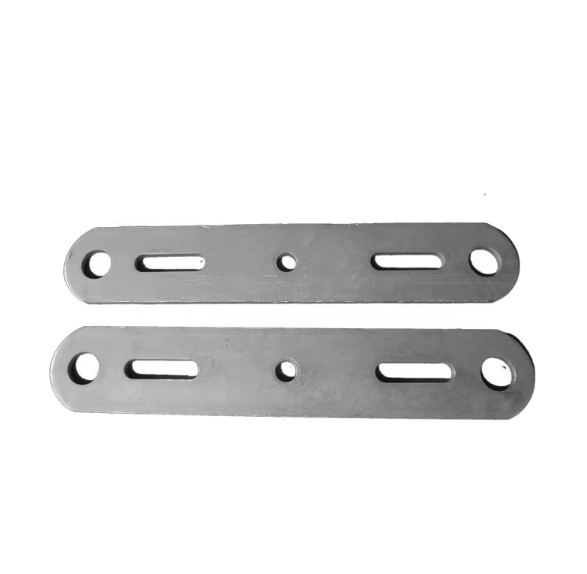

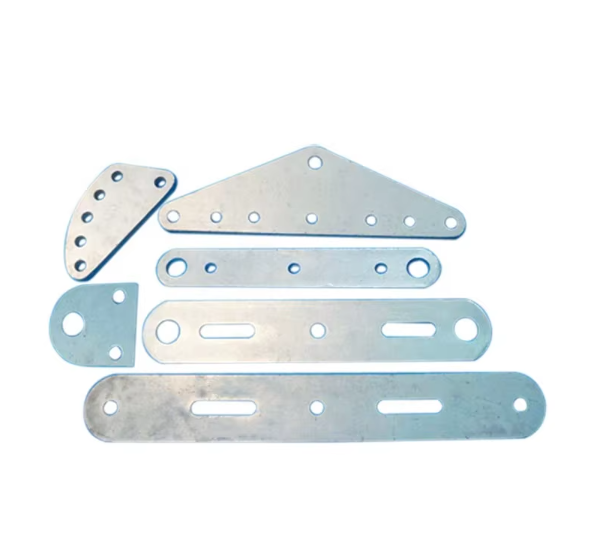

Tower Plates are the core connection components in the power transmission tower structure, designed for high-voltage transmission lines, communication base station towers and substation support systems. As the star product of Handan Jinmai Fastener Manufacturing Co., Ltd., our tower plates are made of high-quality carbon steel or high-strength alloy steel. Through precision stamping and forming technology, they can perfectly adapt to angle steels, bolt groups and cross arm structures of different specifications to ensure the overall stability of the tower and the uniformity of load distribution. The products are widely used in the State Grid, overseas EPC power projects and 5G communication infrastructure construction projects.
1. High-strength materials
Q235B/Q345B steel or customized alloy steel materials are selected, with a tensile strength of 400-550MPa, which can adapt to extreme climates and high wind pressure environments.
2. Anti-corrosion treatment
Hot-dip galvanizing process (zinc layer thickness ≥85μm), salt spray test over 1000 hours, meet IEC 61482 international standards, and extend outdoor service life to more than 30 years.
3. Precision manufacturing process
- CNC laser cutting and multi-station stamping technology, aperture tolerance ±0.1mm, ensure precise matching with bolts, and reduce installation loss rate.
4. Flexible customization
- Support customization of non-standard sizes, special-shaped holes and special coatings (such as Dacromet, epoxy resin), and adapt to global mainstream power specifications such as American standards, European standards, and Australian standards.
5. Strict quality control system
The entire process implements ISO 9001 quality certification, and each batch of products comes with MTC material report and third-party testing certificate (such as SGS, BV).
1. Raw material screening
Steel is directly supplied by the steel mill and stored in the warehouse. The chemical composition is detected by the spectrometer to ensure that the proportion of carbon, manganese, silicon and other elements meets the ASTM A36/A572 standard.
2. Intelligent processing
The laser cutting machine achieves high-precision blanking of ±0.2mm, and cooperates with the progressive die for continuous stamping to complete the punching, flanging, embossing and other processes at one time.
3. Surface treatment
Alkaline degreasing → pickling and rust removal → plating agent immersion → 460℃ high-temperature hot-dip galvanizing → water-cooled passivation to form a dense protective layer.
4. Full inspection and packaging
The three-coordinate measuring instrument performs dimensional sampling, the galvanized layer thickness gauge performs 100% coverage inspection, and the wooden box + anti-rust paper packaging meets the moisture-proof requirements of sea transportation.
Material: Q235B carbon steel (default) / Q345B low alloy steel / customized material
Thickness range: 6mm~25mm (customizable thickening)
Standard size: 200x200mm~1200x800mm (supports super large single piece/multi-piece combination design)
Surface treatment: hot dip galvanizing (average coating 85-120μm) / Dacromet / epoxy spraying
Aperture tolerance: ±0.1mm (bolt hole position) / ±0.5mm (positioning hole)
Tensile strength: ≥400MPa (Q235B) / ≥470MPa (Q345B)
Applicable standards: GB/T 700, ASTM A123, AS/NZS 4680
Packing method: anti-rust oil paper + strapping + export-grade fumigated wooden box
Conclusion：
As a benchmark enterprise in China's power hardware industry, Handan Jinmai Fastener Manufacturing Co., Ltd. has been deeply involved in the tower plate field for 18 years. With "high precision and zero defects" as its core concept, it provides tower plate solutions with more than 5,000 specifications for more than 60 countries and regions around the world. We have a fully automatic production line, a national laboratory and a team of senior engineering consultants. The whole process from raw material traceability to finished product delivery can be traced to ensure that each tower plate can withstand the challenges of harsh working conditions.
Choose Jinmai, you will get:
✅ Quick response: Provide technical solutions and quotations within 48 hours
✅ One-stop service: Support drawing optimization, logistics clearance and on-site installation guidance
✅ Long-term warranty: Provide 10-year product quality commitment
Contact our international business team immediately,
Email: [email protected] WhatsApp/wechat: +86 13831001495 Get exclusive Tower Plates product manuals and engineering case libraries!
